Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
[200W]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the Integrated Body Control (IBU).
(Refer to Body Electrical System - "REPAIR PROCEDURES ")
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

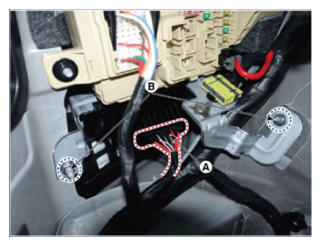

- Disconnect the DC DC converter connector (A).
- Loosen the DC DC converter mounting nut (B) and then remove the DC DC converter.
[400W]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the luggage side trim [LH].
(Refer to Body - "LUGGAGE SIDE TRIM ")
- Disconnect the DC DC converter connector (A).
- Loosen the DC DC converter mounting nut (B) and then remove the DC DC converter.
