Description & Operation: Description
WARNING: This page is about a different variant/trim than selected.
The Alternator has built-in diodes, each rectifying AC current to DC current, to supply DC current to the alternator "B" terminal.
In addition, the charging voltage of this alternator is regulated by the battery voltage detection system.
The alternator is regulated by the battery voltage detection system.

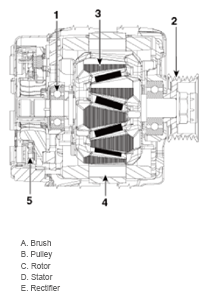

The main components of the alternator are the rotor, stator, rectifier, capacitor brushes, bearings and V-ribbed belt pulley.
The brush holder contains a built-in electronic voltage regulator.
