Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

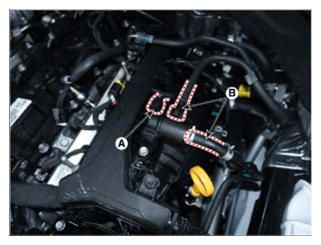

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the favor hose (B), remove the purge control solenoid valve from the bracket.
