Low Pressure Fuel Line (Low Pressure Delivery Pipe ↔ Fuel Tank)

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

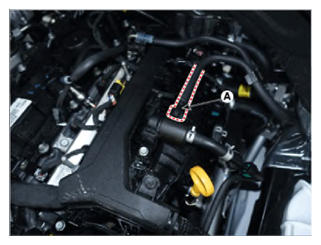

Disconnect the fuel feed quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

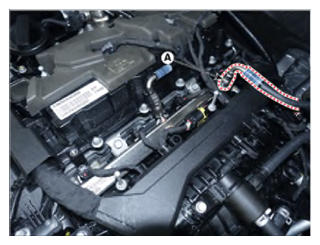

Disconnect the vapor quick-connector (A) from the purge control solenoid valve.

Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

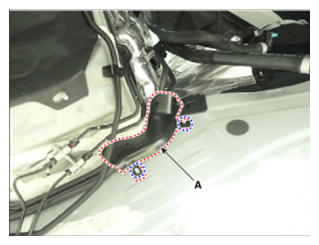

Remove the fuel line bracket (A) after loosening the mounting nuts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

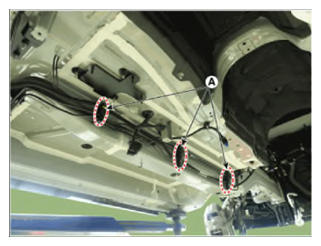

Open the vapor tube and fuel feed line fixing clip (A) to using driver.
Remove the fuel line.

Courtesy of HYUNDAI MOTOR AMERICA
