Low Pressure Delivery Pipe

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

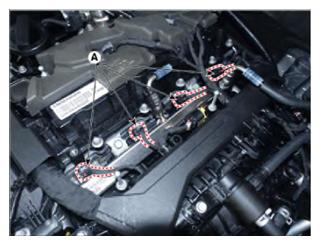

Disconnect the injector connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

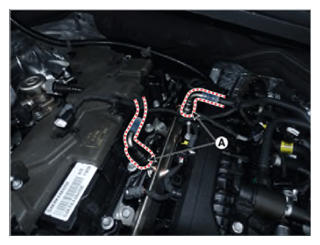

Disconnect the fuel feed quick-connecotrs (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).

If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

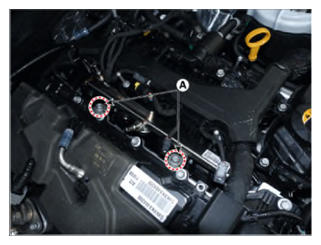

Remove the delivery pipe & injector assembly after loosening the mounting bolts (A).
Tightening torque:

18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

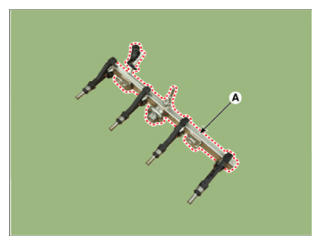

Remove the injector from the delivery pipe (A) after releasing the fixing clip.

Courtesy of HYUNDAI MOTOR AMERICA
