Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the accelerator position sensor connector (A).

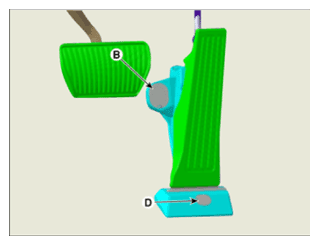

- Remove the mounting nut (C) after removing the top cap (B).
- Remove the mounting bolt (E) after removing the Lower cap (D).
Tightening torque
8.9 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft))
