Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

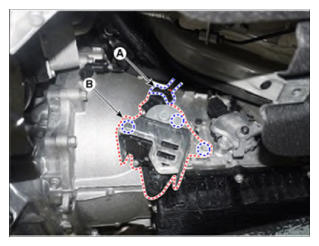

- Disconnect the EOP connector (A) and then loosening the bolts and then removing the electronic oil pump (EOP) (B).
Tightening torque:
19.6 - 25.5 N.m (2.0 - 2.6 kgf.m, 14.5 - 18.8 lb-ft)
