Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedures.
NOTE:

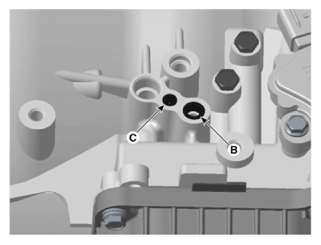

- Check the assembled state of o-ring (A) and pipe seal (B), (C) before reinstalling the EOP.
- When replacing the EOP, the existing pipe seal (B), (C) must be replaced with a new one.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Refill the oil and then check the oil level.
(Refer to "FLUID ")
