[Steering column shroud upper panel]

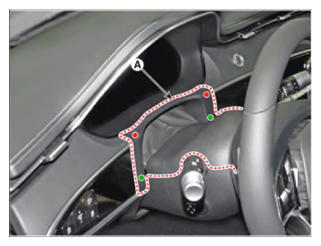

  1. Remove the steering column shroud upper panel (A).
    G14754297Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G14754298Courtesy of HYUNDAI MOTOR AMERICA

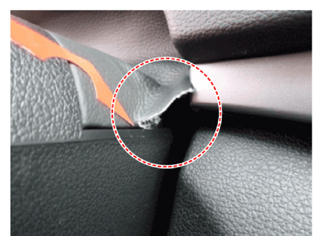

    CAUTION:
    • When removing the shroud upper panel, excessive force may be cause the leather to tear.
    G14754299Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.
