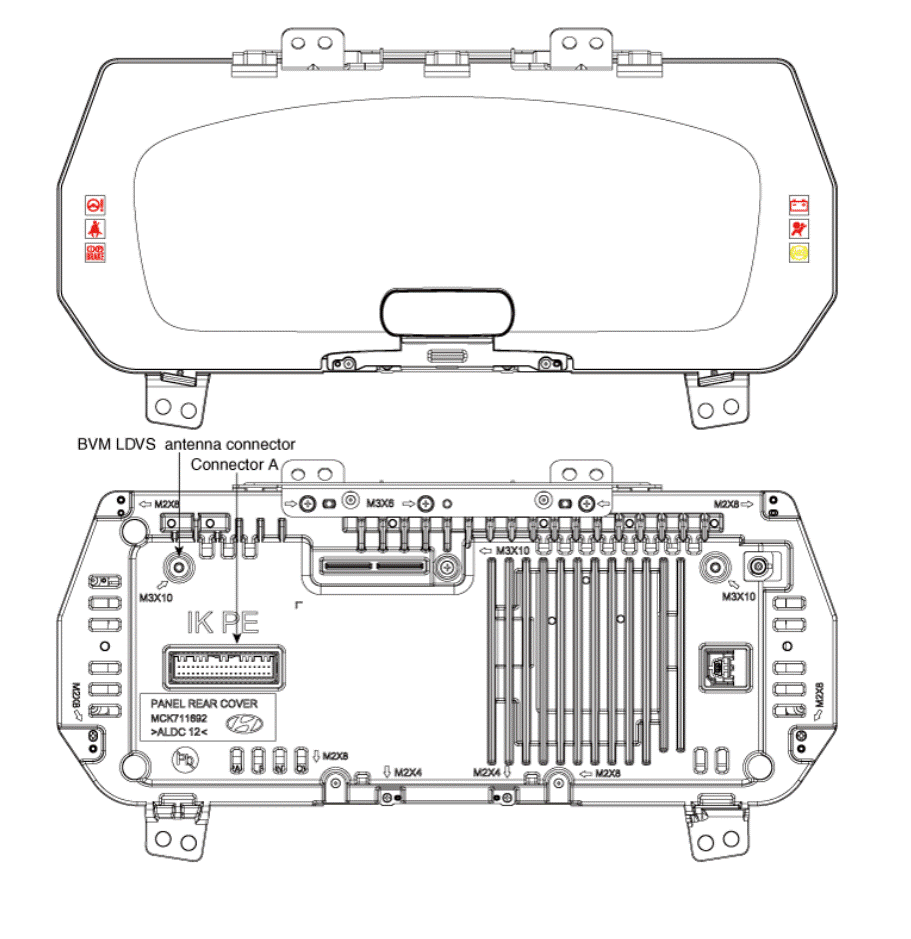

10.25" LCD

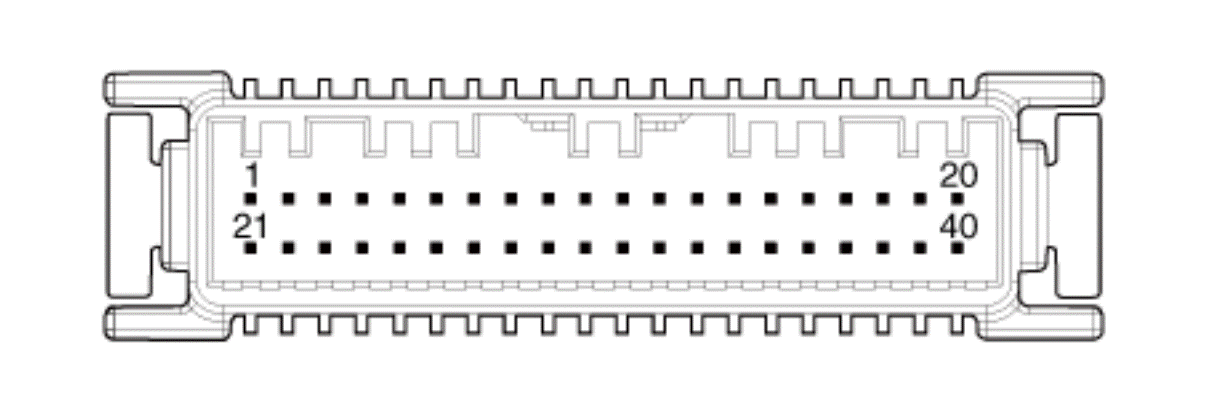

Connector Pin Information
| No | Description |
|---|---|
| 1 | Ground |
| 2 | Illumination output |
| 3 | Rheostat down switch |
| 4 | Rheostat up switch |
| 5 | Detent output |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | Vehicle speed output |
| 13 | Alternator_Input |
| 14 | Fuel sender (+)_Input |
| 15 | - |
| 16 | Fuel sender (-)_Input |
| 17 | Water Separator_Input |
| 18 | Airbag (+) |
| 19 | Oil pressure switch input |
| 20 | - |
| 21 | Trip switch ()_Input |
| 22 | - |
| 23 | Trip switch 2 (+) |
| 24 | Drive mode switch (clockwise) input |
| 25 | Drive mode switch (counter clockwise) input |
| 26 | Speaker (+) |
| 27 | Speaker () |
| 28 | N (M/T) Input |
| 29 | Multimedia CAN (Low) |
| 30 | Multimedia-CAN (High) |
| 31 | Alternator_Output |
| 32 | Chassis-CAN (High) |
| 33 | Chassis-CAN (Low) |
| 34 | - |
| 35 | - |
| 36 | - |
| 37 | Ground signal 1 |
| 38 | - |
| 39 | Ignition 1 |
| 40 | Battery + |
