Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the front seat assembly (both sides).
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the front pillar trim
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
Remove the cluster fascia panel.
(Refer to Cluster Pad - "Cluster Fascia Panel ")
Remove the AVN head unit.
(Refer to Body Electrical System - "AVN HEAD UNIT ")
Remove the AVN front monitor.
(Refer to Body Electrical System - "FRONT LCD MONITOR ")
Remove the instrument cluster.
(Refer to Body Electrical System - "INSTRUMENT CLUSTER ")
Remove the head up display.
(Refer to Body Electrical System - "HEAD UP DISPLAY UNIT ")
Remove the glove box housing cover.
(Refer to Crash Pad - "GLOVE BOX HOUSING COVER ")
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the multifunction switch.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

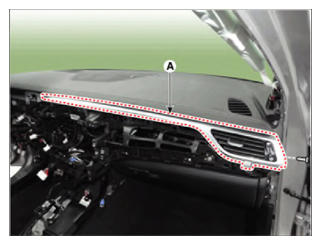

After loosening the mounting screws, remove the garnish panel [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts and screws, remove the crash pad center panel [CTR] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the PM sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

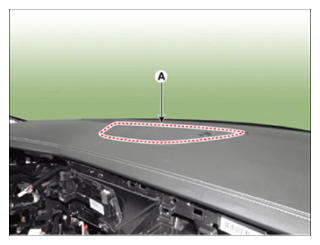

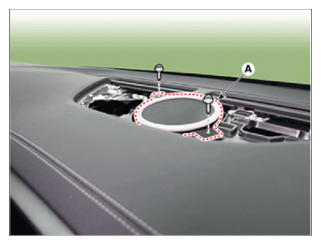

Using a screwdriver or remover, remove the center speaker grill (A).

Courtesy of HYUNDAI MOTOR AMERICA

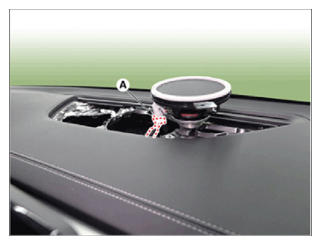

Loosen the mounting screws, remove the center speaker (A).

Courtesy of HYUNDAI MOTOR AMERICA

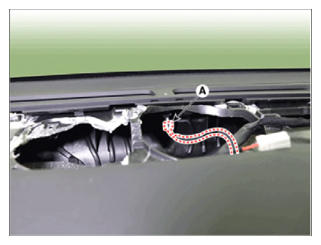

Disconnect the center speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

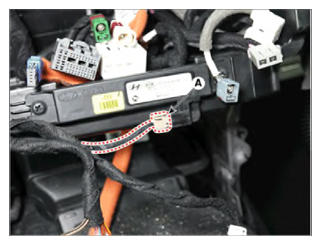

Disconnect the smart key antenna (A).

Courtesy of HYUNDAI MOTOR AMERICA

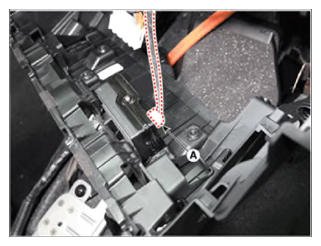

Disconnect the security connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

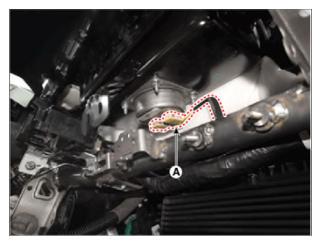

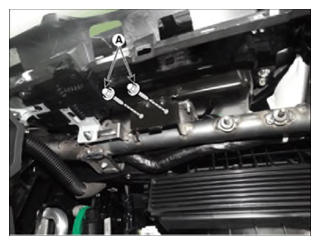

Loosen the mounting bolts (A).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

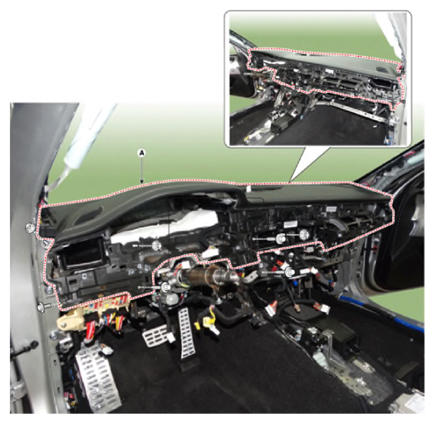

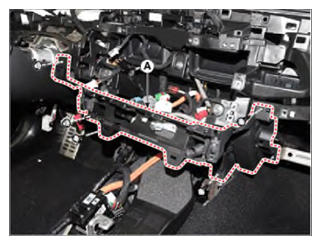

Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger's airbag connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-type retainers).
