Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

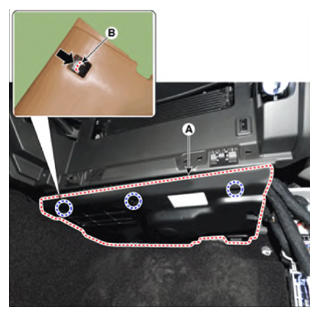

Press the lock pin (B) and remove the crash pad under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

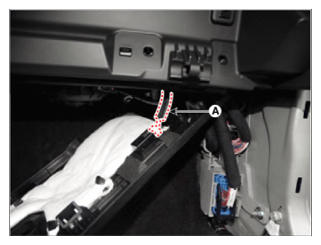

Disconnect the under lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
