Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")
- Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
- Remove the knee airbag module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
- Remove the accelerator pedal.
(Refer to Engine Control/Fuel System - "Accelerator Position Sensor (APS) ")
- Separate the floor carpet (A) to back.

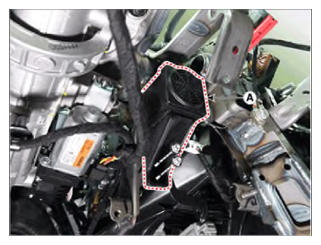

- Loosen the mounting bolt and remove the floor air duct (A).
- Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")

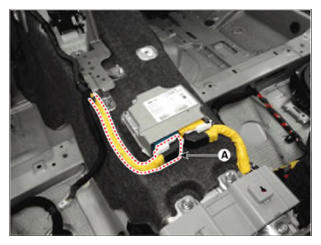

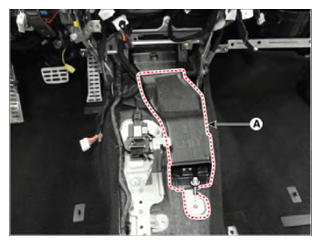

- Disconnect the airbag control module (SRSCM) connector (A).

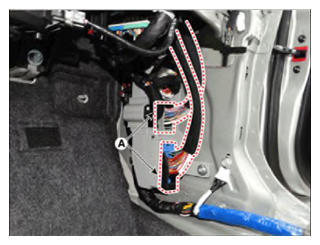

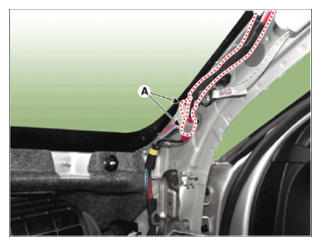

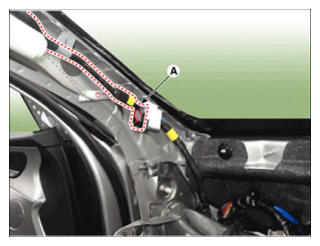

- Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.
[LH]
[RH]

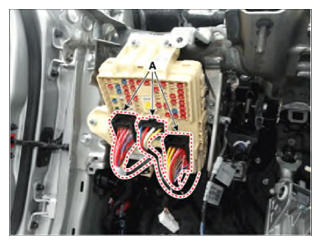

- Disconnect the passenger compartment junction box connectors (A).

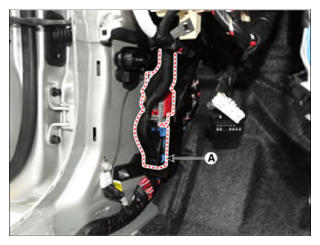

- Disconnect the multi box connectors (A).
[LH]
[RH]
- Loosen the mounting nuts, remove the cluster speaker (A).
- Disconnect the cluster speaker connector (A).

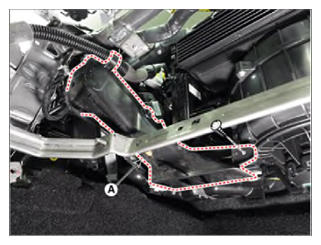

- Loosen the mounting screw, remove the shower duct (A).
[LH]
[RH]

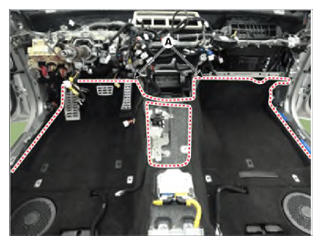

- Disconnect the heater & blower unit connectors.

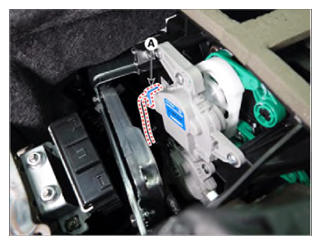

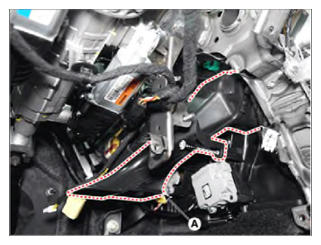

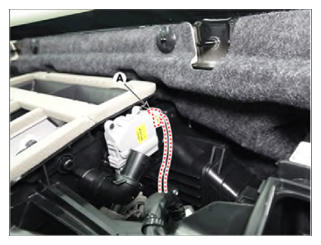

- Disconnect the mode control actuator connector (A).

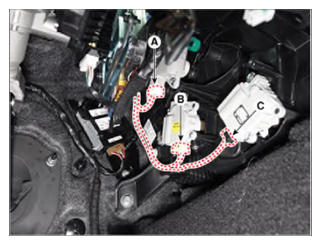

- Disconnect the driver temperature control actuator connector (A), console ON/OFF actuator connector (B) and console temperature control actuator connector (C).
- Disconnect the auto defogging actuator connector (A).

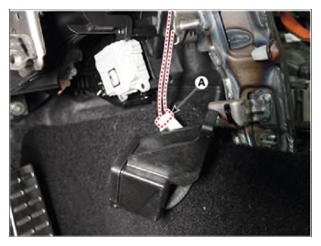

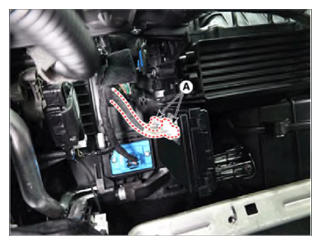

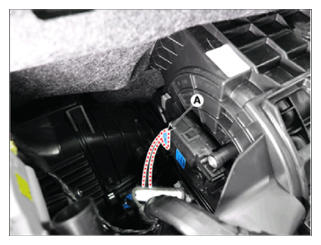

- Disconnect the intake actuator connector (A).

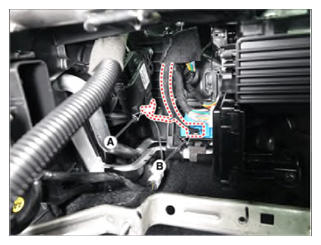

- Disconnect the passenger temperature control actuator connector (A) and power mosfet connector (B).

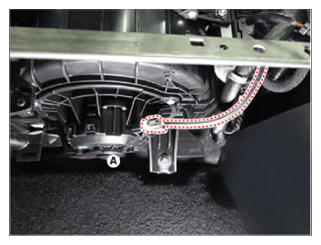

- Disconnect the blower motor connector (A).
- Disconnect the heater control unit connector (A).

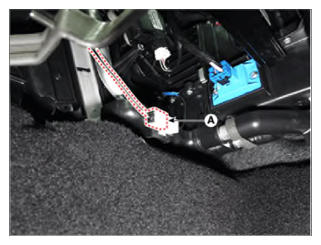

- Disconnect the evaporator temperature sensor connector (A).
- Disconnect the mode control actuator connector (A).
- Remove the IBU.
(Refer to Body Electrical System - "INTEGRATED BODY CONTROL UNIT (IBU) "

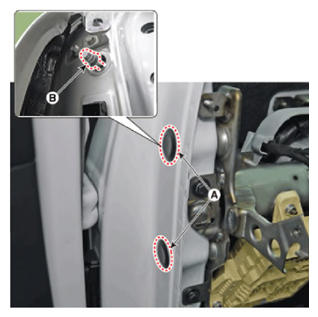

- Remove the plug hole (A) and loosen the cowl cross bar side mounting bolts.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)
NOTE:- Release the bolt tightness and then leave the bolt (B) in its place.

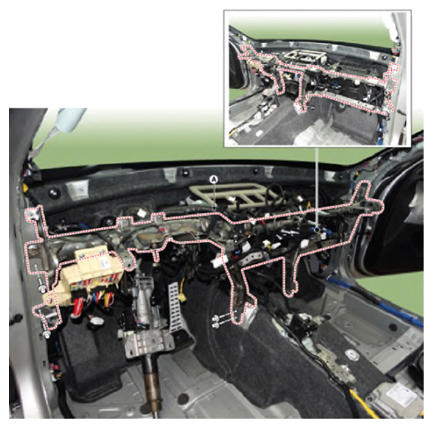

- After loosening the bolts and nuts, remove the cowl cross bar assembly (A).
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)
- To install, reverse the removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti- theft code for the radio, then enter the customer's radio station presets.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-type retainers).
