Components & Components Location: Components: [LH]

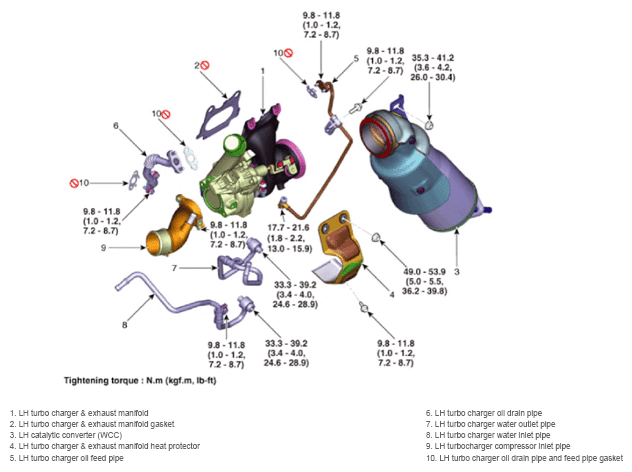

Fig 1: Turbocharger, Exhaust Manifold And Catalytic Converter Components Location With Torque Specifications (LH)

G14728343

Courtesy of HYUNDAI MOTOR AMERICA
