Rear Muffler

  1. Remove the rear muffler hanger (A).

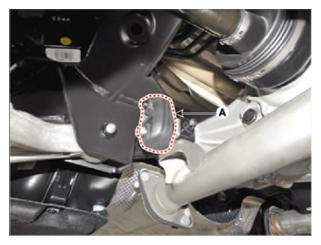

    [LH front]

    G14728387Courtesy of HYUNDAI MOTOR AMERICA

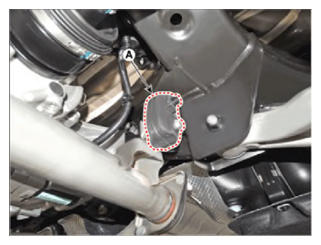

    [RH front]

    G14728388Courtesy of HYUNDAI MOTOR AMERICA

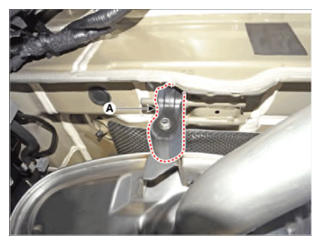

    [LH rear]

    G14728389Courtesy of HYUNDAI MOTOR AMERICA

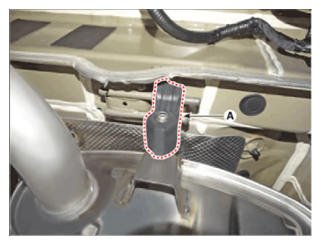

    [RH rear]

    G14728390Courtesy of HYUNDAI MOTOR AMERICA

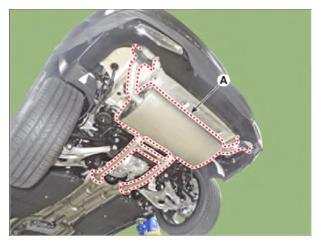

  2. Remove the rear muffler (A).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

    G14728391Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
    NOTE:
    • When installing, replace with new gaskets.
