RH Air cleaner element replacement

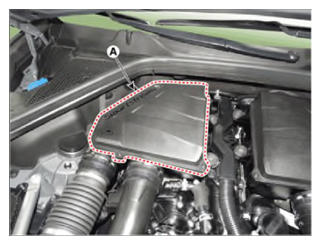

  1. Open the RH air cleaner element cover (A).
    G14728314Courtesy of HYUNDAI MOTOR AMERICA

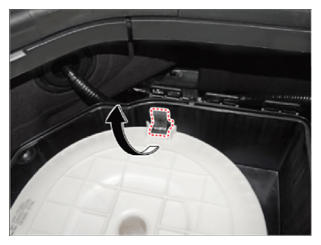

  2. Release the clamp in the direction as shown in the illustration below.
    G14728315Courtesy of HYUNDAI MOTOR AMERICA

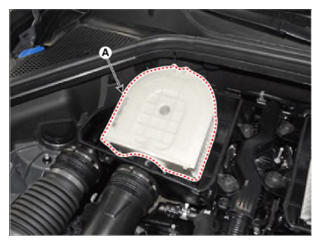

  3. Replace the RH air cleaner element (A) with a new one.
    G14728316Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

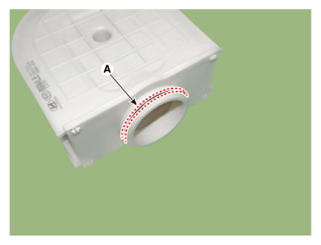

    • Do not reuse the air cleaner element O-ring (A).
    G14728317Courtesy of HYUNDAI MOTOR AMERICA

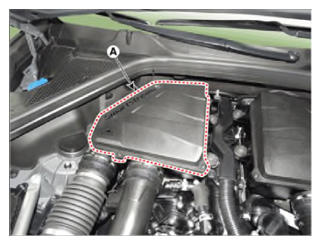

  4. Close the RH air cleaner element cover (A).
    G14728318Courtesy of HYUNDAI MOTOR AMERICA
