LH Air cleaner element replacement

  1. Open the LH air cleaner element cover (A).
    G14728309Courtesy of HYUNDAI MOTOR AMERICA

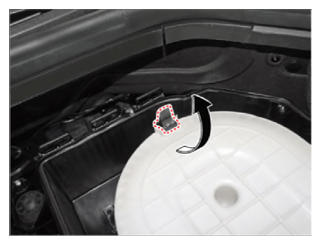

  2. Release the clamp in the direction as shown in the illustration below.
    G14728310Courtesy of HYUNDAI MOTOR AMERICA

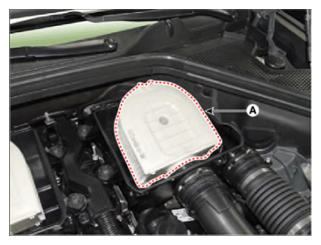

  3. Replace the LH air cleaner element (A) with a new one.
    G14728311Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

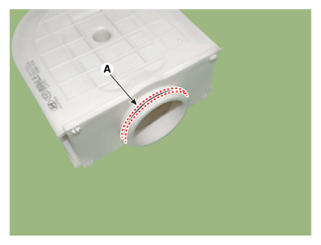

    • Do not reuse the air cleaner element O-ring (A).
    G14728312Courtesy of HYUNDAI MOTOR AMERICA

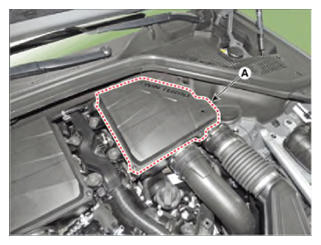

  4. Close the LH air cleaner element cover (A).
    G14728313Courtesy of HYUNDAI MOTOR AMERICA
