RH Air cleaner assembly

  1. Disconnect the battery negative terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  3. Remove the engine room cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

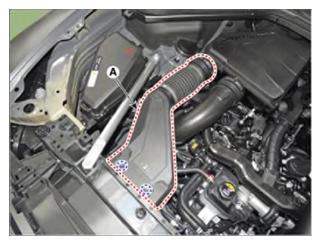

  4. Remove the RH air duct (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)

    G14728305Courtesy of HYUNDAI MOTOR AMERICA

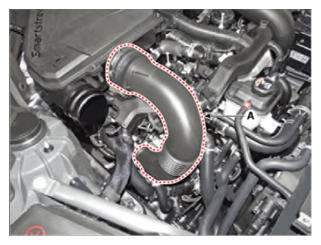

  5. Disconnect the RH air intake hose (A).
    G14728306Courtesy of HYUNDAI MOTOR AMERICA

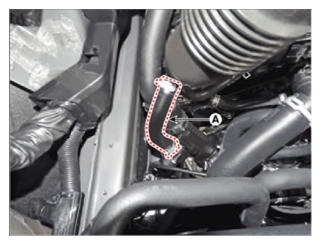

  6. Disconnect the RCV hose (A).
    G14728307Courtesy of HYUNDAI MOTOR AMERICA

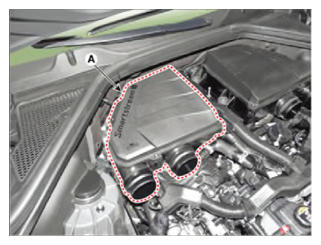

  7. Remove the RH air cleaner assembly (A).
    G14728308Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
