LH Air cleaner assembly

  1. Disconnect the battery negative terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  3. Remove the engine room cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

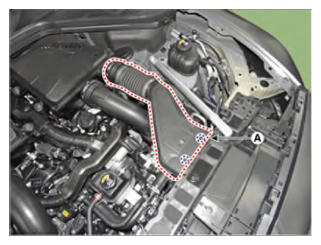

  4. Remove the LH air duct (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)

    G14728301Courtesy of HYUNDAI MOTOR AMERICA

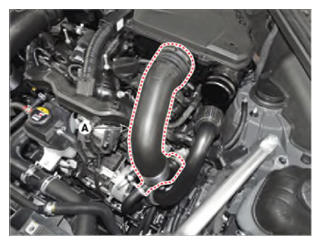

  5. Disconnect the LH air intake hose (A).
    G14728302Courtesy of HYUNDAI MOTOR AMERICA

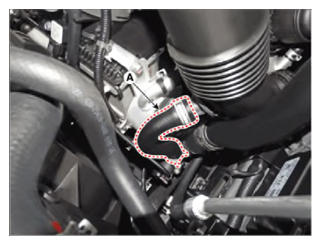

  6. Disconnect the RCV hose (A).
    G14728303Courtesy of HYUNDAI MOTOR AMERICA

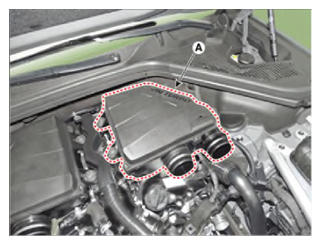

  7. Remove the LH air cleaner assembly (A).
    G14728304Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
