Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

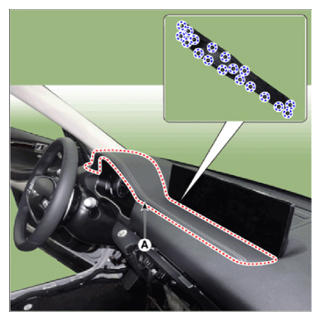

  2. Using a remover, remove the cluster fascia upper garnish (A).
    G14723956Courtesy of HYUNDAI MOTOR AMERICA

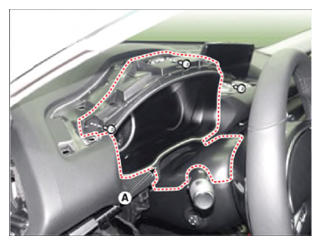

  3. Loosen the mounting screws and remove the cluster fascia panel (A).
    G14723957Courtesy of HYUNDAI MOTOR AMERICA

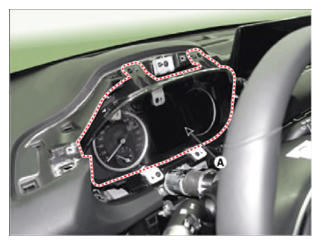

  4. Remove the cluster (A) after loosening mounting screws.
    G14723958Courtesy of HYUNDAI MOTOR AMERICA

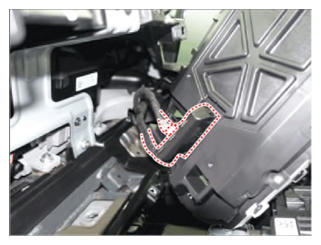

  5. Disconnect the cluster connector.
    G14723959Courtesy of HYUNDAI MOTOR AMERICA
