Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the rear seat cushion assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

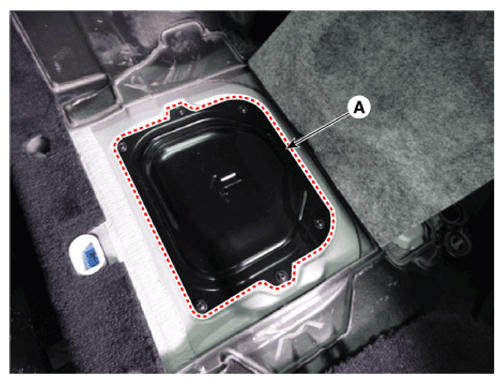

  4. Remove the fuel pump service cover (A) after loosening the screws.
    G14233213Courtesy of HYUNDAI MOTOR AMERICA

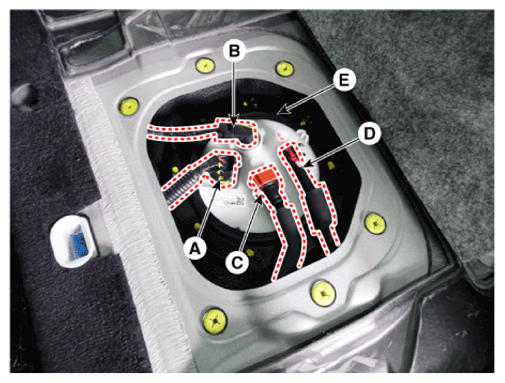

  5. Disconnect the fuel pump connector (A) and fuel pressure connector (B).
  6. Disconnect the fuel feed tube quick-connector (C) and the suction hose (D).

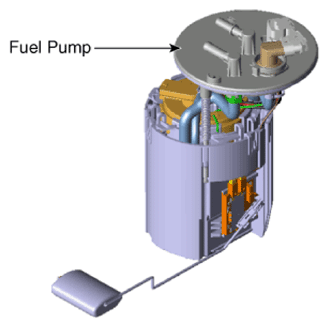

  7. Remove the fuel pump plate cover (E) after loosening installation bolts, and then remove the fuel pump.
G14233214Courtesy of HYUNDAI MOTOR AMERICA
G14233215Courtesy of HYUNDAI MOTOR AMERICA
