Fuel Sender
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.
(Refer to Fuel Delivery System - "FUEL PUMP ")

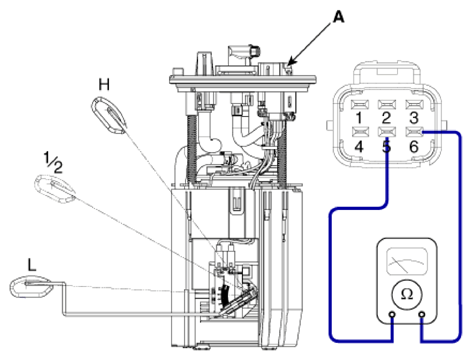

- Using an ohmmeter, measure the resistance between terminals 5 and 6 of sender connector (A) at each float level.
Pin No Description 1 Fuel pump (U) phase control 2 Fuel pump (V) phase control 3 Fuel pump (W) phase control 4 Ground 5 Fuel sender signal 6 Fuel sender ground - Check that the resistance is within the specification.
| Position | Resistance (Ω) | Capacity (l ) |
|---|---|---|
| L | 137.5 - 140.5 | 3 |
| 1/2 | 6 - 8 | 41 |
| H | 6 - 8 | 81 |
