Fuel Pump Three Phase Coil Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.
(Refer to Fuel Delivery System - "FUEL PUMP ")

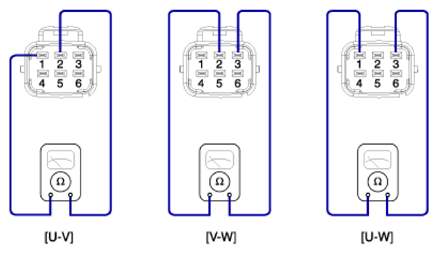

- Using an ohmmeter, measure the resistance between terminals U-V, V-W, W-U.
- Check that the resistance is within the specification.
Specification: 0.09 - 0.13Ω
| Pin No | Description |
|---|---|
| 1 | Fuel pump (U) phase control |
| 2 | Fuel pump (V) phase control |
| 3 | Fuel pump (W) phase control |
| 4 | Ground |
| 5 | Fuel sender signal |
| 6 | Fuel sender ground |
