Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the trunk rear transverse trim.
  3. Fold the luggage side trim (LH).

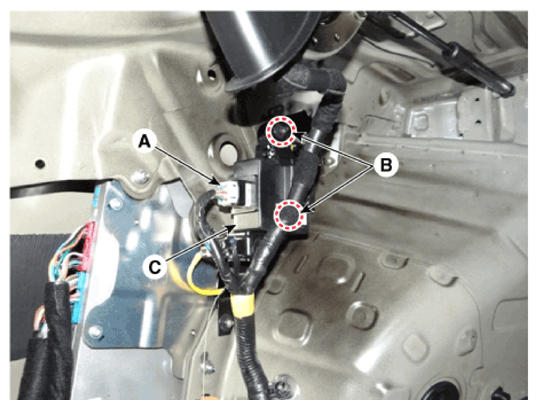

  4. Disconnect the fuel pump control module connector (A).
  5. Remove the mounting nuts (B), and then remove the fuel pump control module (C) from the vehicle.
G14233253Courtesy of HYUNDAI MOTOR AMERICA
