Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

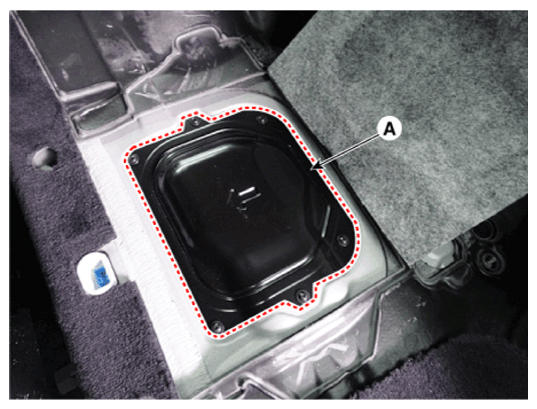

  3. Remove the fuel pump service cover (A) after loosening the screws.
    G14233257Courtesy of HYUNDAI MOTOR AMERICA

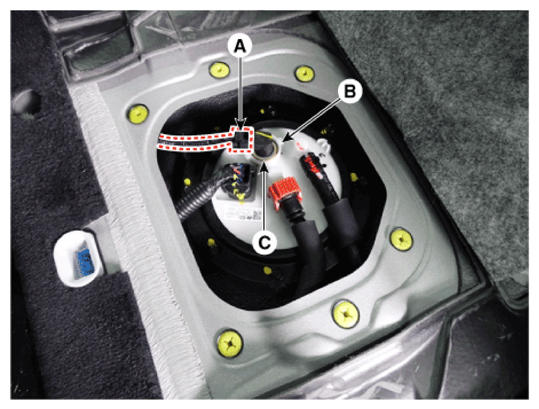

  4. Disconnect the fuel pressure sensor connector (A).
  5. Remove the fuel pressure sensor fixing pin (B).
  6. Remove the fuel pressure sensor (C) from the fuel pump.
G14233258Courtesy of HYUNDAI MOTOR AMERICA
