Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

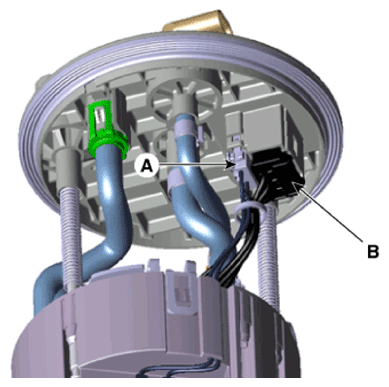

- Remove the fuel sender connector (A).
- Disconnect the fuel sender connector (B).

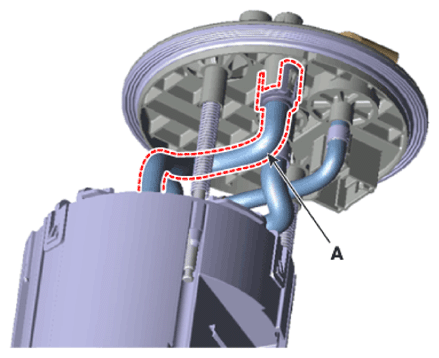

- Disconnect the suction hose (A) after releasing the fixing hook.

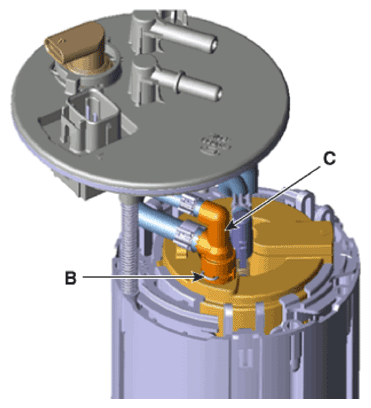

- Disconnect the fuel delivery hose (C) after removing fixing clip (B).

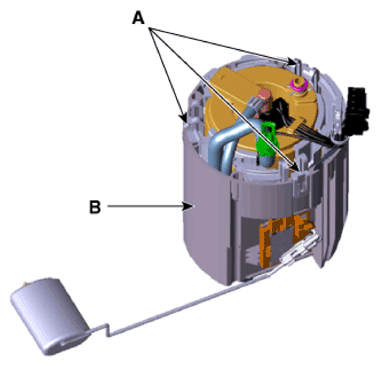

- Remove the reservoir-cup (B) after releasing the fixing hooks (A).

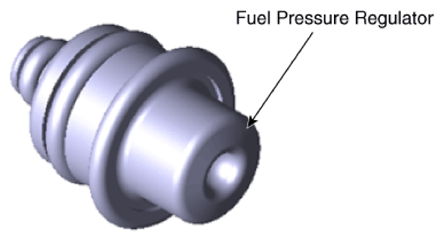

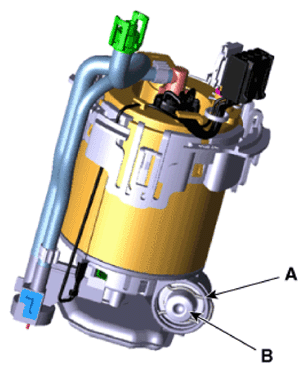

- Disconnect the fuel pressure regulator (B) after removing fixing hooks (A).
