Rear Fuel Line

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  3. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  4. Disconnect the rear vapor tube quick-connector (A).

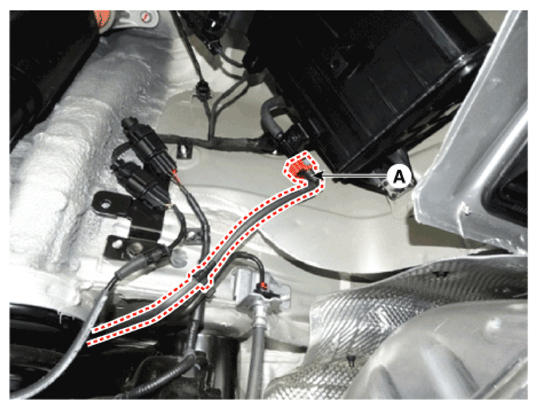

    G14233268Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the front vapor and fuel tube line quick-connector (A).

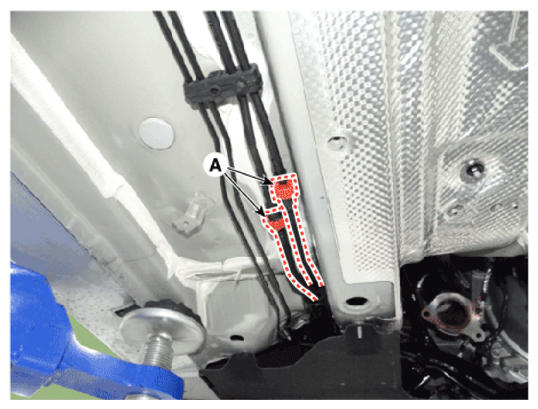

    G14233269Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the vapor tube and fuel feed tube line fixing clips (A) by using a common driver.

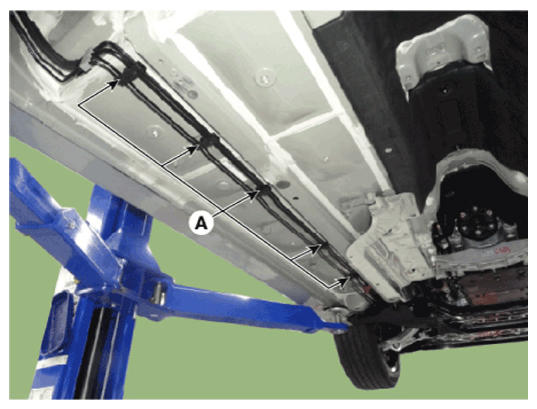

    G14233270Courtesy of HYUNDAI MOTOR AMERICA

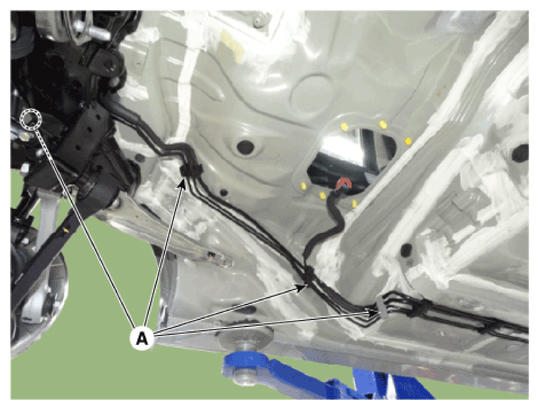

    G14233271Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the rear fuel line from the bottom of the vehicle.
G14233272Courtesy of HYUNDAI MOTOR AMERICA
