Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Start the engine.

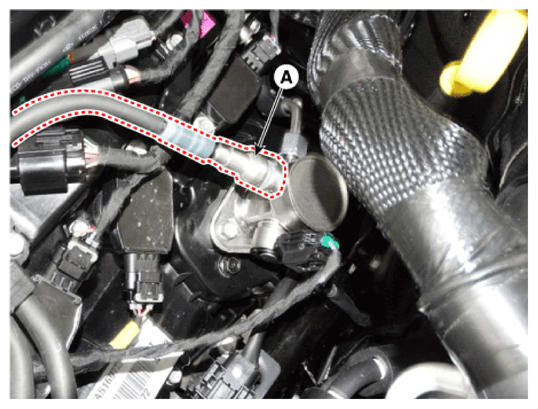

- Check the fuel feed line (A) installation state and fuel leakage state.
- Fold the rear seat cushion.

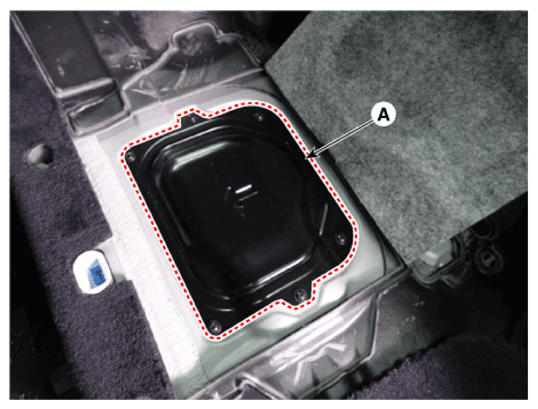

- Remove the fuel pump service cover (A) after loosening the screws.

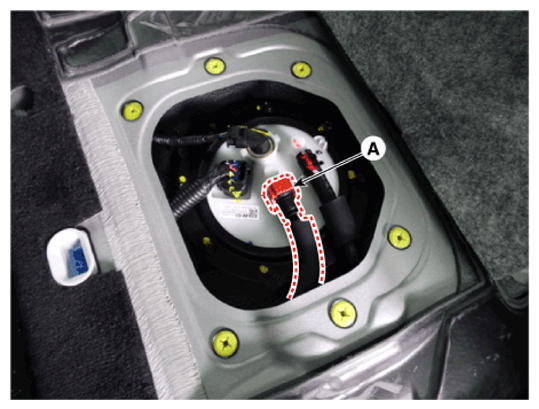

- Check the fuel feed quick-connector (A) installation state and fuel leakage state.

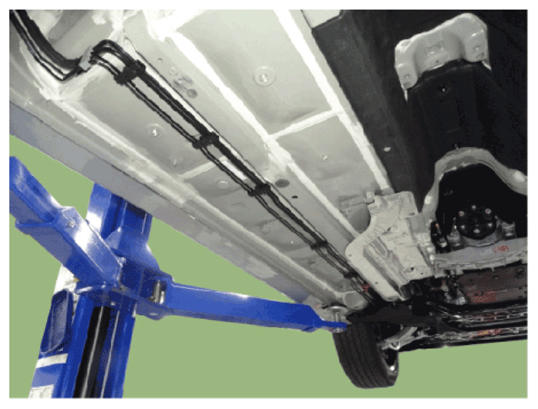

- Lift the vehicle.
- Check the fuel leakage state.
- Replace the fuel line after checking the abnormal fuel line.
(Refer to Fuel Delivery System - "FUEL LINE ")
