Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the rear-left wheel & tire and wheel house cover.
  3. Remove the fuel filler cap after opening the fuel filler door.

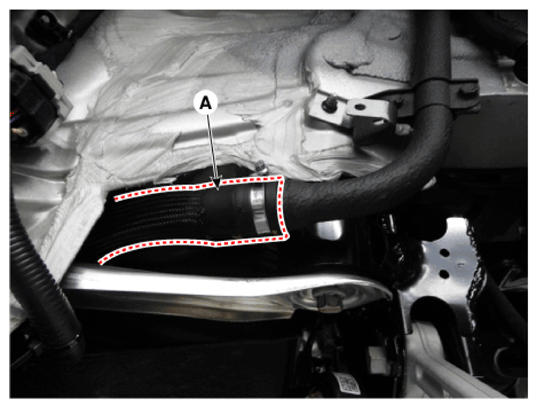

  4. Disconnect the fuel filler hose (A).
    G14233277Courtesy of HYUNDAI MOTOR AMERICA

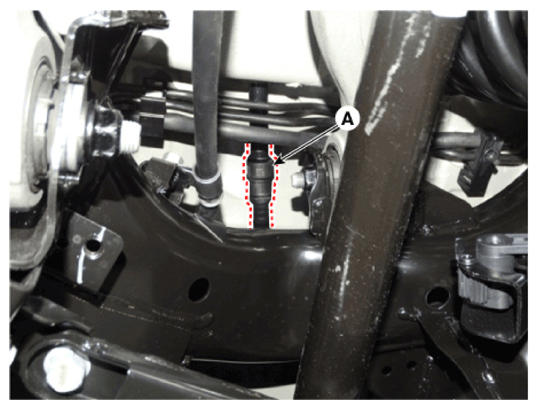

  5. Disconnect the vent hose quick-connector (A).
    G14233278Courtesy of HYUNDAI MOTOR AMERICA

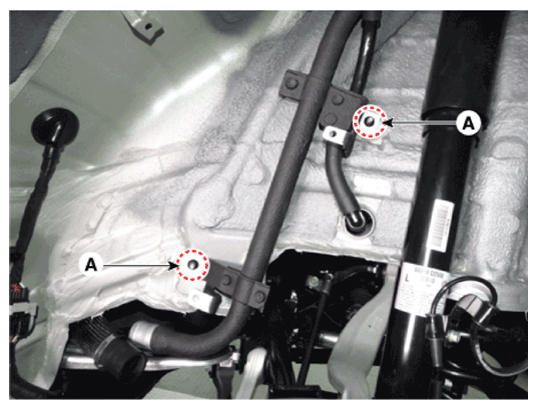

  6. Remove the mounting nuts (A), and then remove the fill-neck assembly.
G14233279Courtesy of HYUNDAI MOTOR AMERICA
