Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the mounting nut (C) after removing the top cap (B).
  4. Remove the mounting bolt (E) after removing the Lower cap (D).

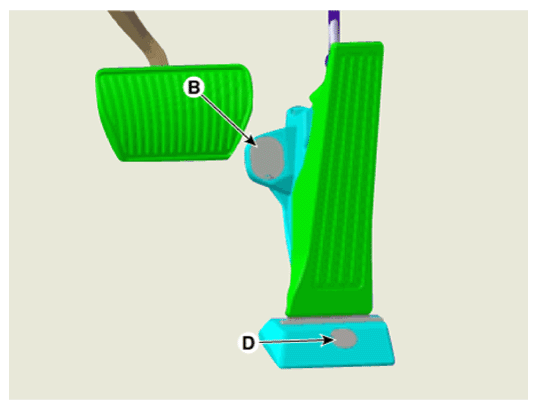

G14233280Courtesy of HYUNDAI MOTOR AMERICA

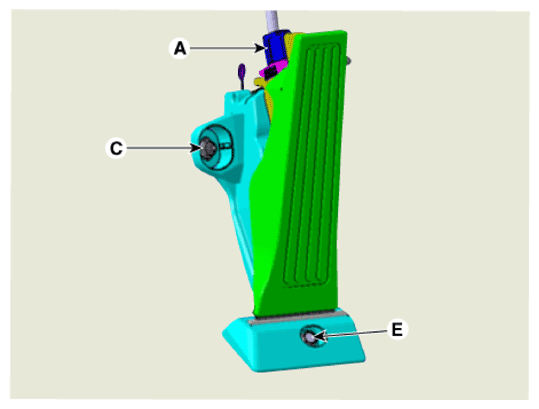

G14233281Courtesy of HYUNDAI MOTOR AMERICA
