Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Set No. 1 cylinder to top dead center (TDC)/compression.

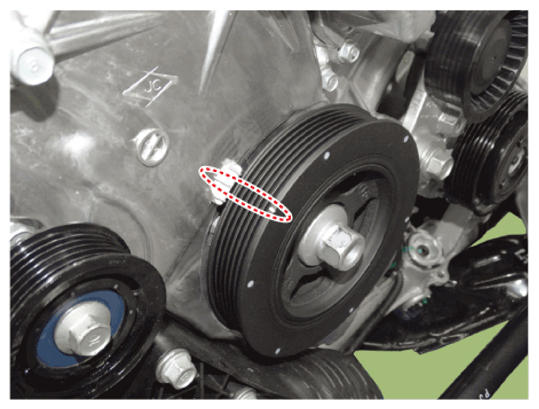

Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

G14207305

Courtesy of HYUNDAI MOTOR AMERICA

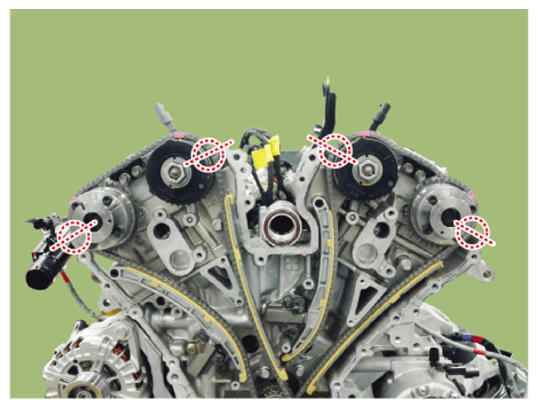

Check that the mark (A) of the camshaft timing sprockets is in the straight line on the cylinder head surface as shown in the figure. If not, turn the crankshaft clockwise, making one revolution (360°).

G14207306

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Do not rotate engine counterclockwise.

Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
NOTE:

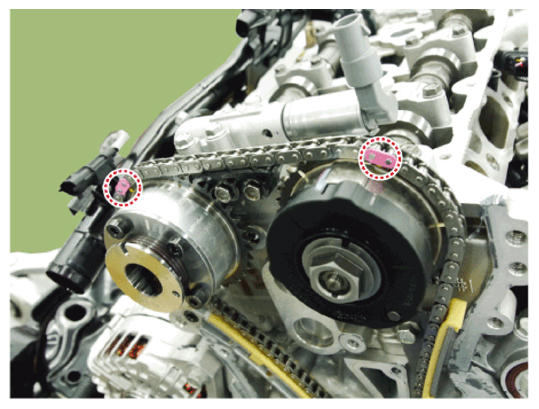

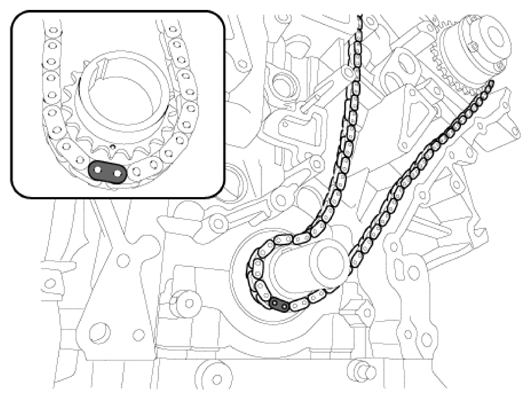

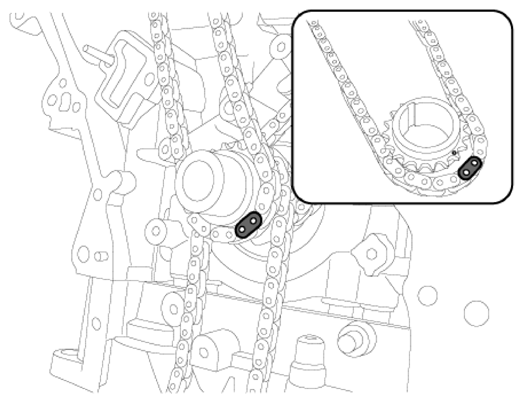

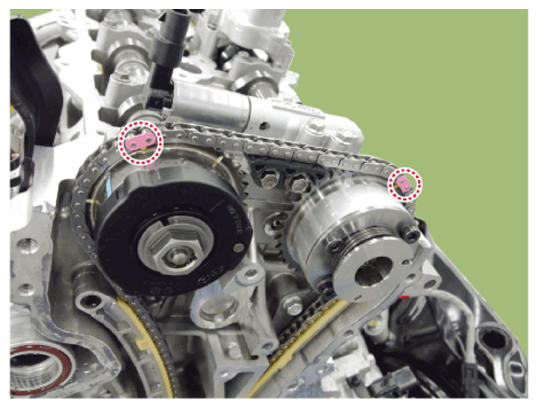

- Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC can be erased.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

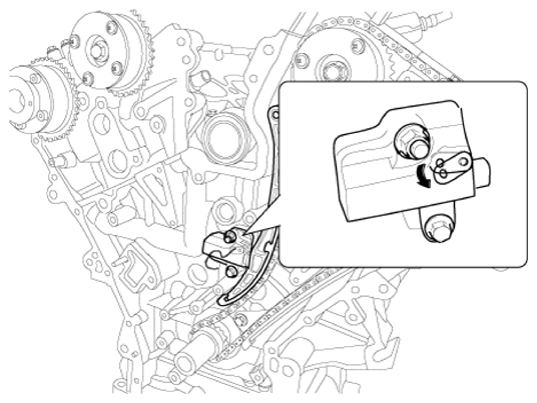

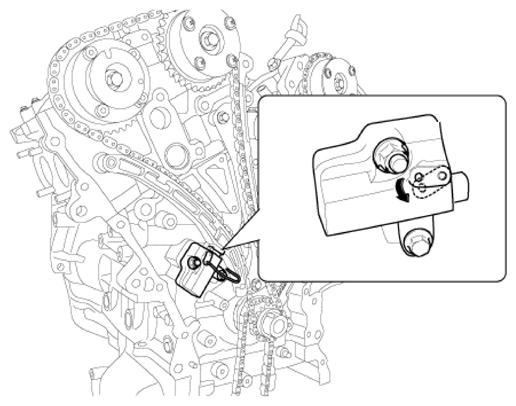

Lower the tensioner link (A), compress the piston of the RH timing chain tensioner, and fix the tensioner with a fixing pin.

Courtesy of HYUNDAI MOTOR AMERICA

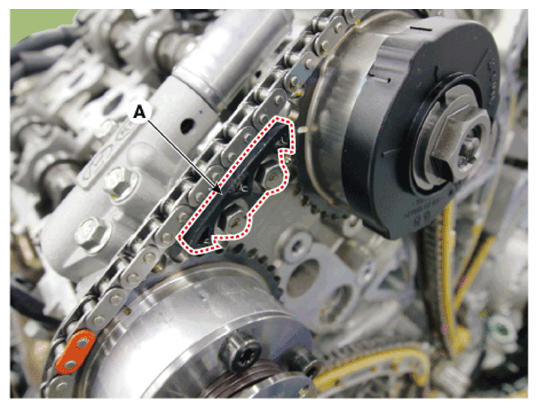

Remove the RH timing chain cam to cam guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

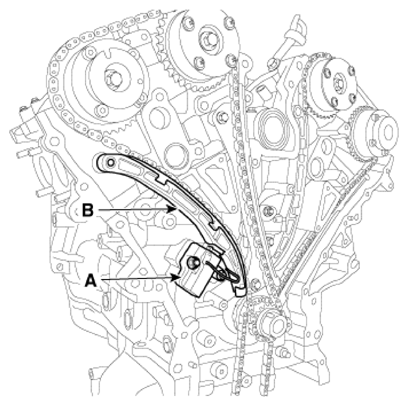

Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).

Courtesy of HYUNDAI MOTOR AMERICA

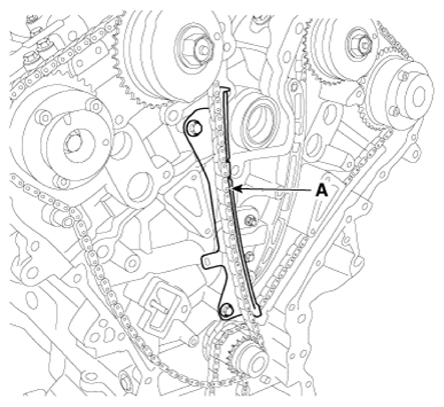

Remove the RH timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

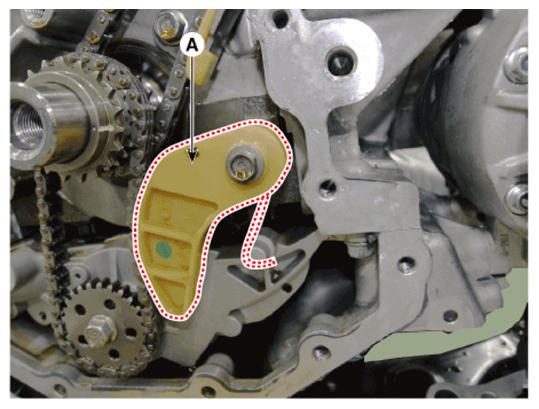

Remove the oil pump chain tensioner assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

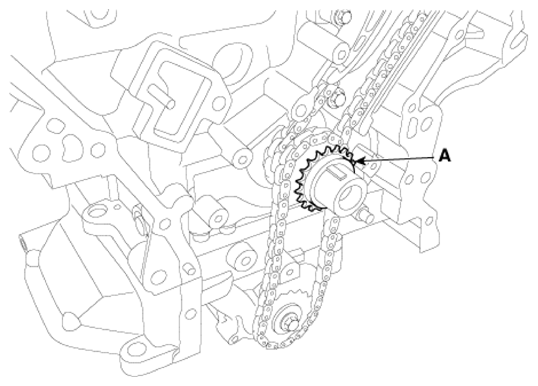

Remove the RH crankshaft chain sprocket (A).

Courtesy of HYUNDAI MOTOR AMERICA

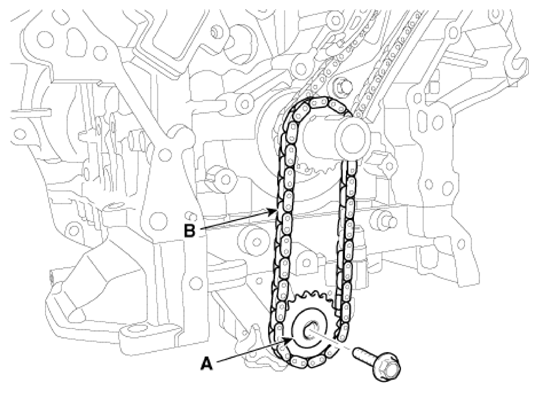

Remove the oil pump chain sprocket (A) and oil pump chain (B).

Courtesy of HYUNDAI MOTOR AMERICA

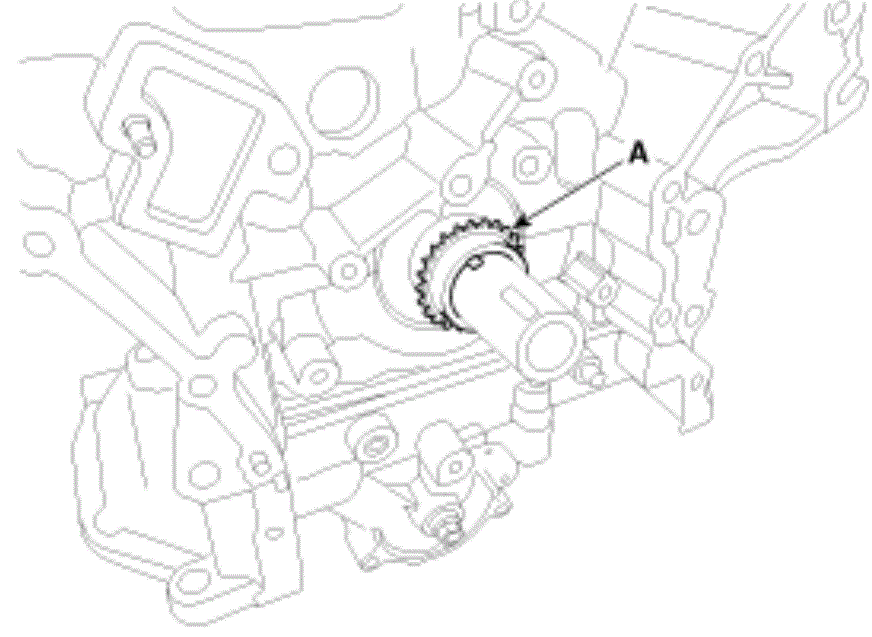

Remove the crankshaft sprocket (A) (O/P & RH camshaft drive).

Courtesy of HYUNDAI MOTOR AMERICA
Install a set pin after compressing the LH timing chain tensioner.

Courtesy of HYUNDAI MOTOR AMERICA

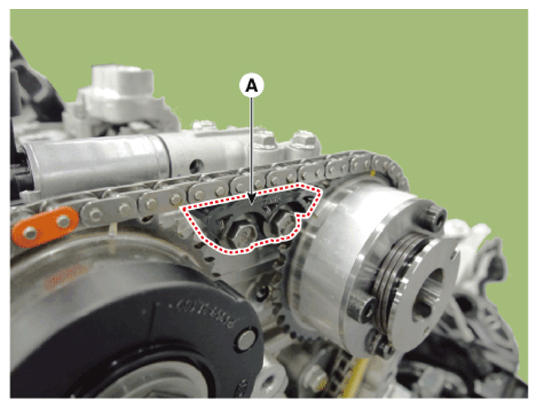

Remove the LH timing chain cam to cam guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

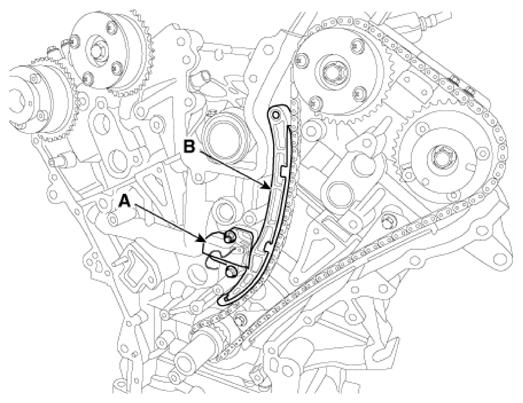

Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

Courtesy of HYUNDAI MOTOR AMERICA

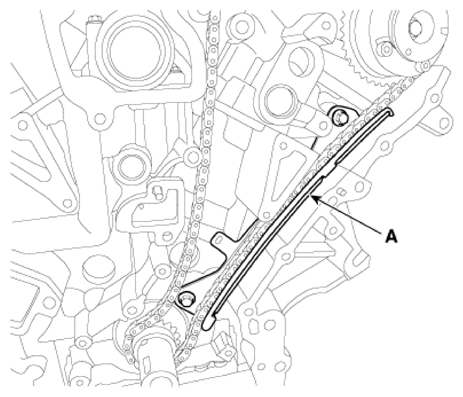

Remove the LH timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

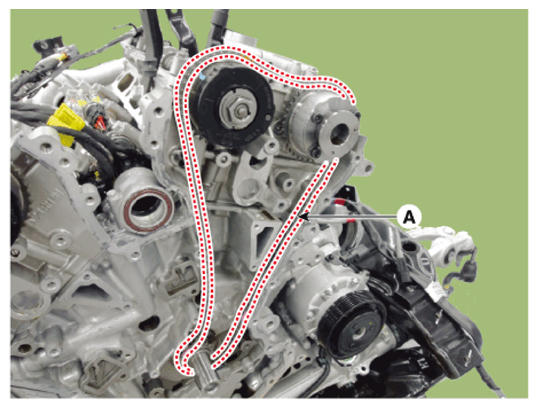

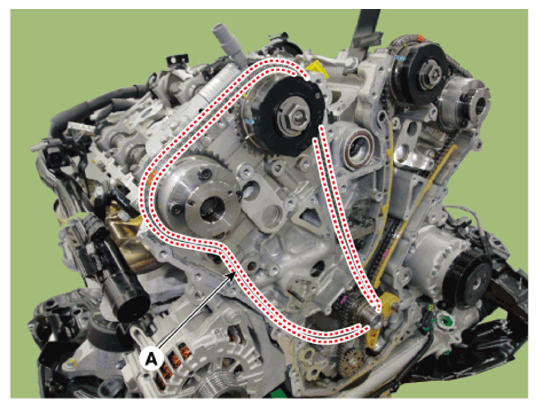

Remove the LH timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

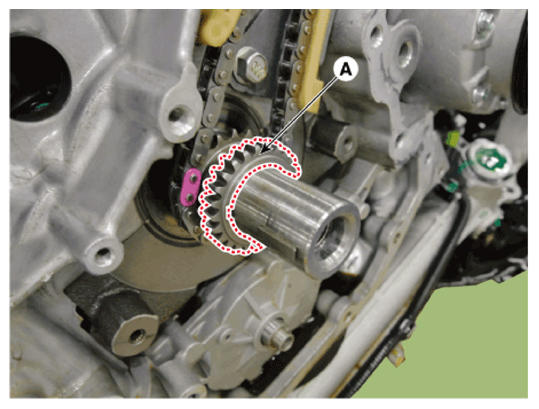

Remove the crankshaft sprocket (A). (LH camshaft drive)

Courtesy of HYUNDAI MOTOR AMERICA

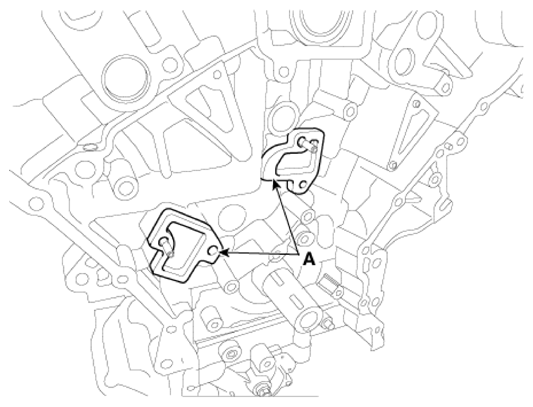

Remove the timing chain auto tensioner assembly adapter (A).

Courtesy of HYUNDAI MOTOR AMERICA
