Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft pulley.

    (Refer to Timing System - "CRANKSHAFT PULLEY ")

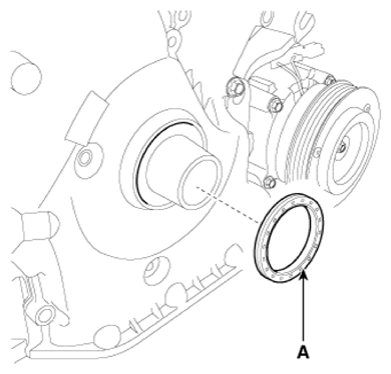

  2. Remove the timing chain cover oil seal (A).
    G14207293Courtesy of HYUNDAI MOTOR AMERICA
