Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery (-) terminal from the trunk room.
- Remove the engine cover.
- Remove the engine room cover.

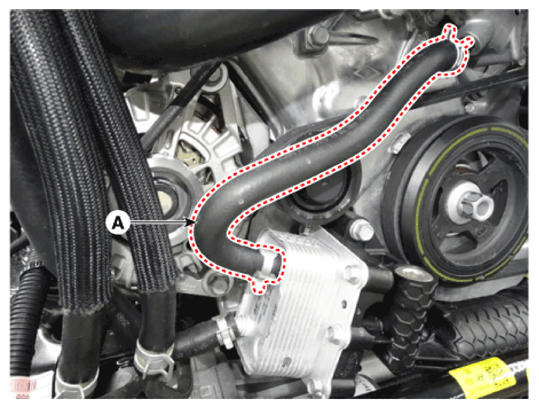

- Remove the engine oil cooler hose (A).

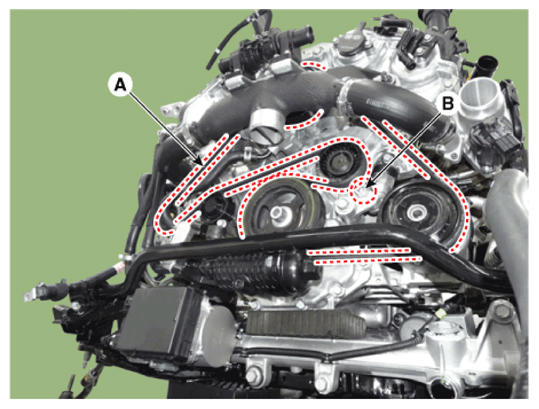

- Turn the tensioner (B) counterclockwise and loosen it, then remove the drive belt (A).
NOTE:
- When installing the drive belt, follow the order below.
- crankshaft pulley → A/C compressor pulley → Idler Pulley → alternator pulley → water pump pulley → drive belt auto tensioner pulley.
- Rotate the auto tensioner arm by turning the auto tensioner arm boss (B) counterclockwise using a wrench.
- To install, reverse the removal procedure.
