Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

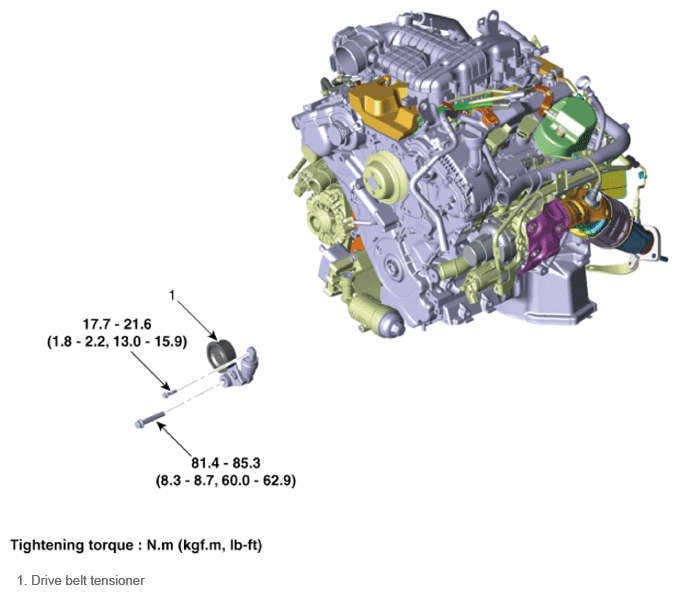

Fig 1: Drive Belt Tensioner Components Location With Torque Specification
G14207286Courtesy of HYUNDAI MOTOR AMERICA
