Valve Clearance Inspection And Adjustment

(Refer to Intake and Exhaust System - "AIR CLEANER ")

(Refer to Intake and Exhaust System - "SURGE TANK ")

(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

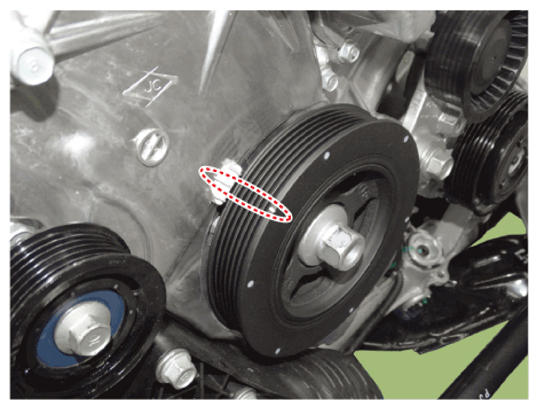

1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the figure below.

   If not, turn the crankshaft clockwise one revolution (360°).

Courtesy of HYUNDAI MOTOR AMERICA

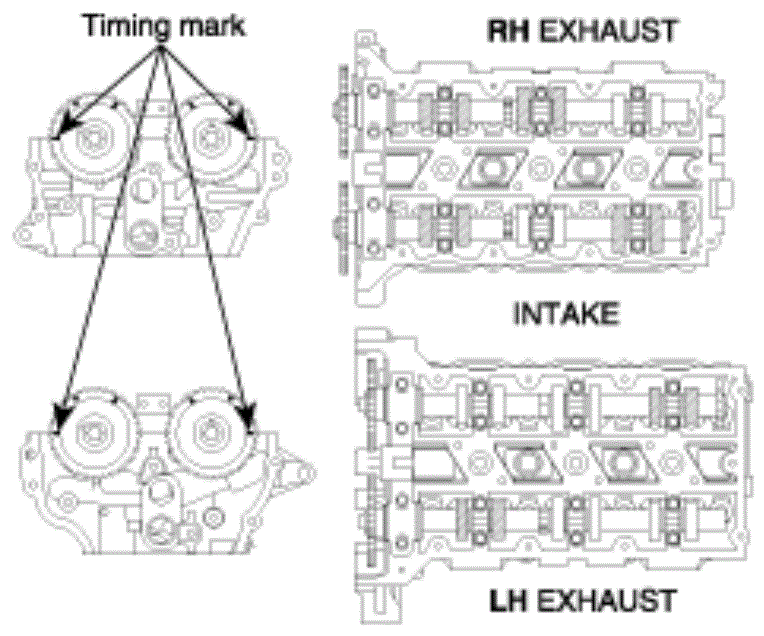

1. With No. 1 cylinder at TDC inspect clearances only on the valves shown in figure below.

   Courtesy of HYUNDAI MOTOR AMERICA

   Measurement method.

   1. Using a thickness gauge, measure the clearance between the tappet and the base circle of camshaft.
   2. Record the out-of-specification valve clearance measurements. They will be used later to determine the required replacement adjusting tappet.

   Valve clearance

   Specification

   Engine coolant temperature: 20°C [68°F]

   Limit

   Intake: 0.10 - 0.30 mm (0.0039 - 0.0118 in.)

   Exhaust: 0.20 - 0.40 mm (0.0078 - 0.0157 in.)

2. Turn the crankshaft pulley clockwise one revolution (360°) and align the groove with timing mark "T" of the lower timing chain cover.

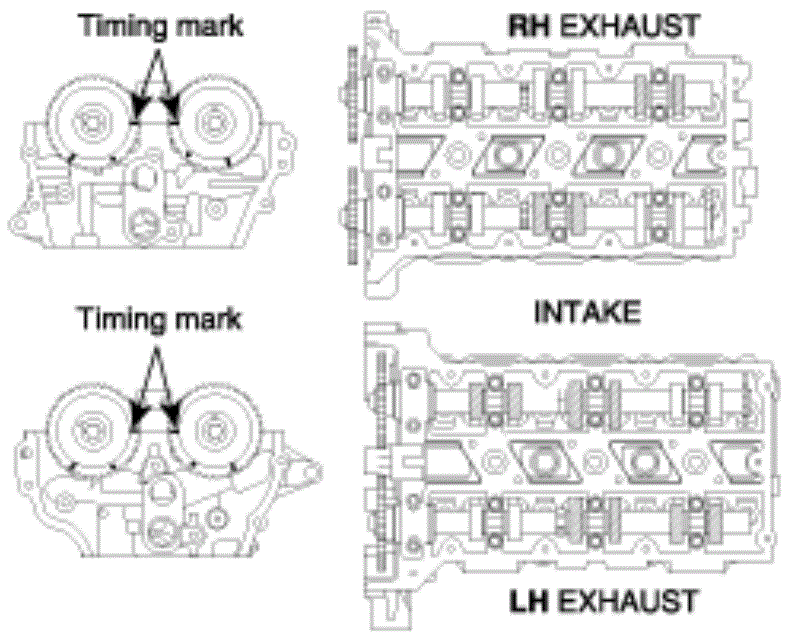

3. With No. 4 cylinder at TDC inspect clearances only the valves shown in figure below. (Refer to procedure step  1.)

   Courtesy of HYUNDAI MOTOR AMERICA

1. Set the No. 1 cylinder to the TDC/compression.
2. Remove the timing chain. (Refer to TIMING CHAIN .)
   NOTE:

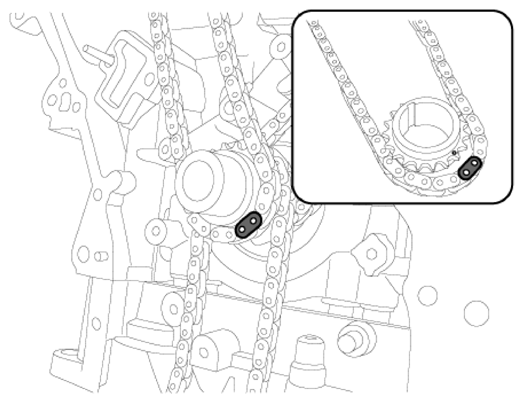

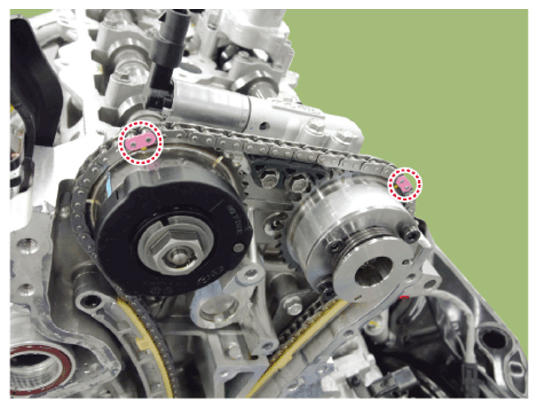

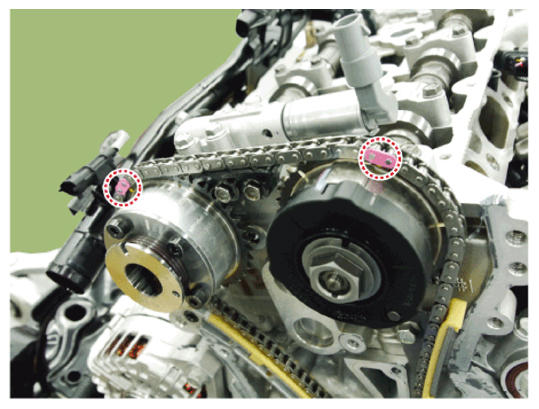

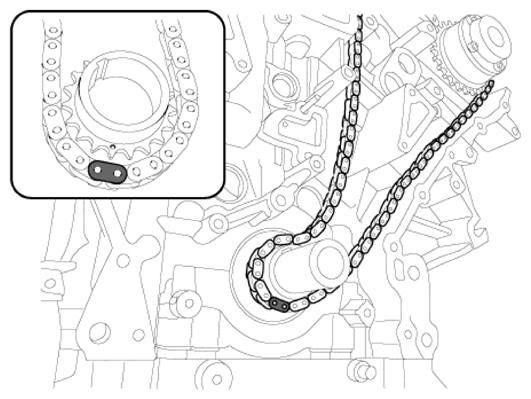

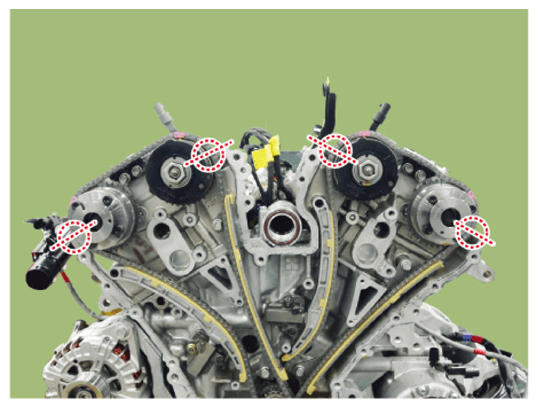

   • Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

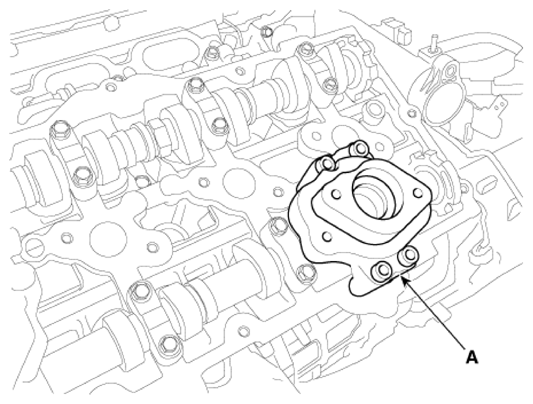

3. Remove the fuel pump bracket (A).

   Courtesy of HYUNDAI MOTOR AMERICA

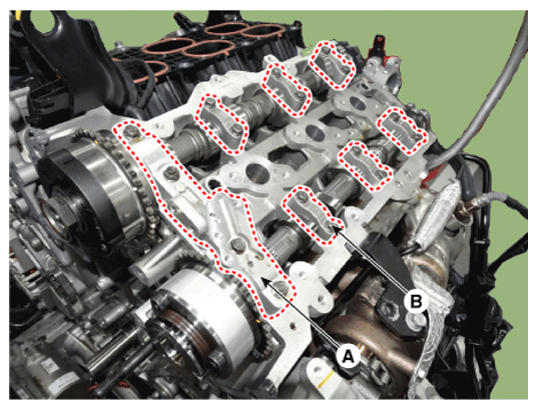

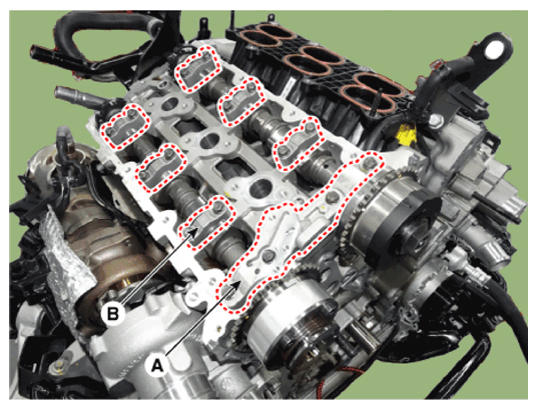

4. Remove the LH/RH camshaft bearing cap (A) and thrust bearing cap (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

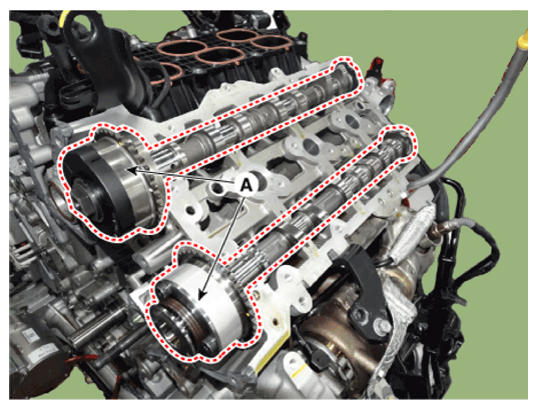

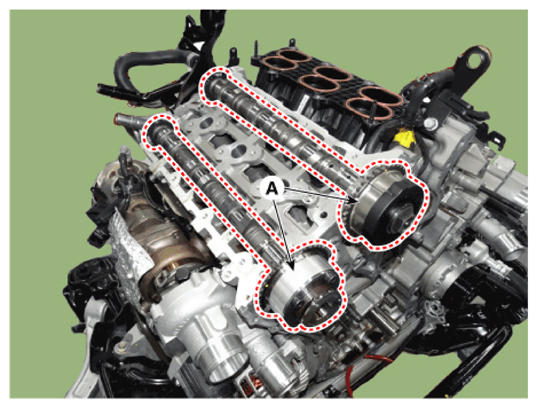

5. Remove the LH/RH camshaft assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

6. Remove the tappets.
7. Measure the thickness of the removed tappet using a micrometer.

   Courtesy of HYUNDAI MOTOR AMERICA

8. Calculate the thickness of a new tappet so that the valve clearance comes within the specified value.

   T  : Thickness of removed tappet

   A  : Measured valve clearance

   N  : Thickness of new tappet

   Intake  : N = T + [A - 0.20 mm (0.0079 in.)]

   Exhaust  : N = T + [A - 0.35 mm (0.0113 in.)]

9. Select a new tappet with a thickness as close as possible to the calculated value.
   NOTE:

   • Shims are available in 41size increments of 0.015 mm (0.0006 in.) from 3.00 mm (0.118 in.) to 3.600 mm (0.1417 in.)
10. Place a new tappet on the cylinder head.
    NOTE:

    • Apply engine oil at the selected tappet on the periphery and top surface.
11. Install the intake and exhaust camshaft.
12. Install the bearing caps.

    (Refer to CYLINDER HEAD ASSEMBLY )

13. Install the timing chain.

    (Refer to Timing System - "TIMING CHAIN ")

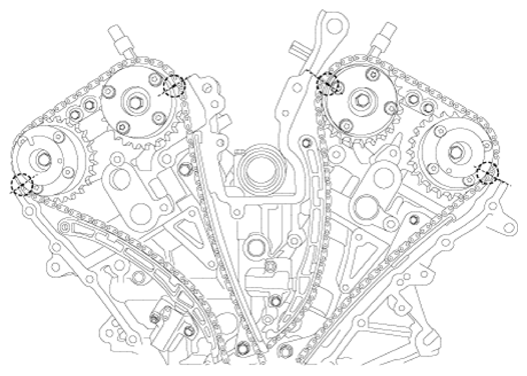

14. Turn the crankshaft two turns in the operating direction (clockwise) and realign crankshaft sprocket and camshaft sprocket timing marks.

    Courtesy of HYUNDAI MOTOR AMERICA

15. Recheck the valve clearance.

    Valve clearance (Engine coolant temperature: 20°C [68°F])

    [Specification]

    Intake: 0.17 - 0.23 mm (0.0067 - 0.0090 in.)

    Exhaust: 0.32 - 0.38 mm (0.0125 - 0.0149 in.)
