RH Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery (-) terminal from the trunk room.
  2. Remove the surge tank.

    (Refer to Intake and Exhaust System - "SURGE TANK ")

  3. Remove the RH ignition coil and wiring.

    (Refer to Engine Electrical System - "IGNITION COIL ")

  4. Remove the RH exhaust CMP sensor connector (A).

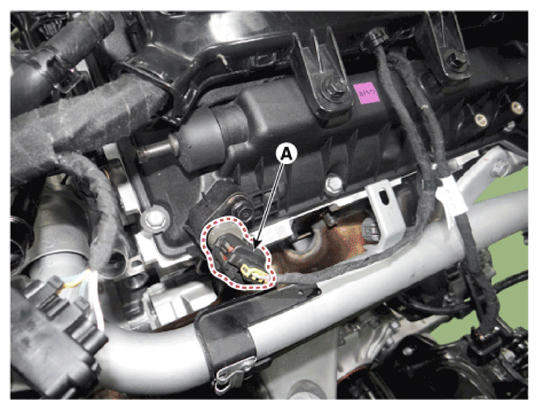

    G14207360Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the RH cylinder head cover.
    1. Remove the RH exhaust CVVT oil control valve (OCV) cap (A).
    2. Remove the RH cylinder head cover (B).

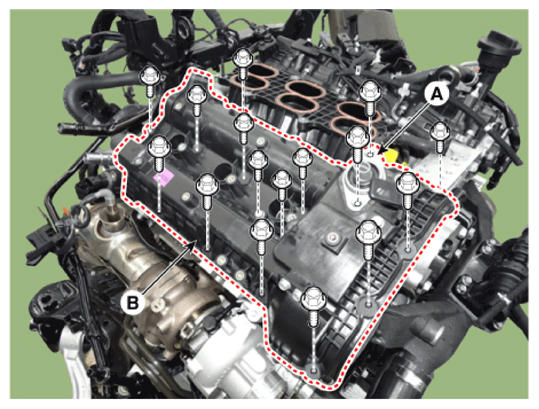

      G14207361Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Cover the cylinder head with a piece of clean cloth or vinyl cover to prevent foreign materials from entering the cylinder head.
