RH Intake And Exhaust Camshaft
WARNING: This page is about a different variant/trim than selected.
- Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

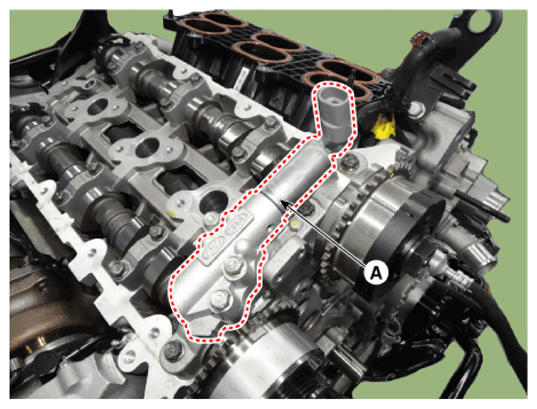

- Remove the RH exhaust camshaft oil control valve (OCV) (A).

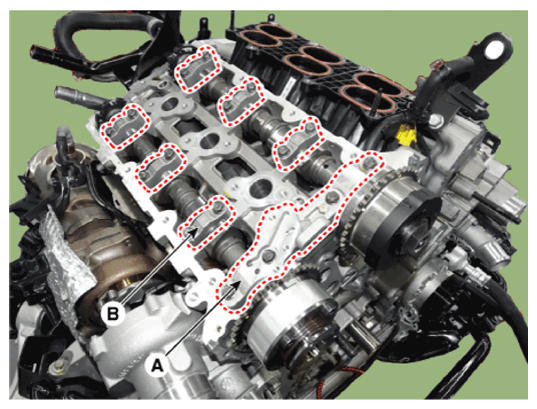

- Remove the RH camshaft bearing cap (A) and thrust bearing cap (B).

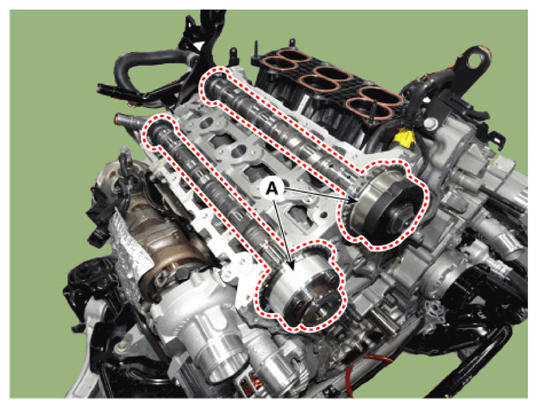

- Remove the RH camshaft assembly (A).
