LH Intake And Exhaust Camshaft

WARNING: This page is about a different variant/trim than selected.

Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

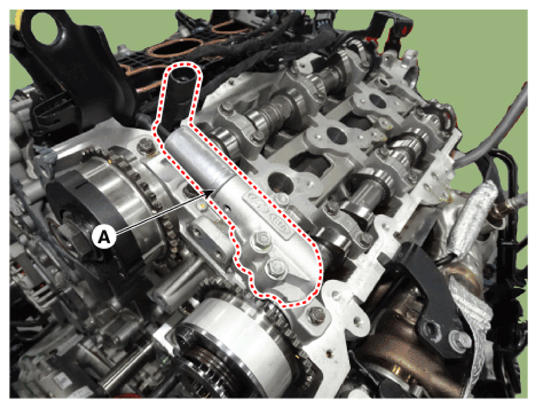

Remove the fuel pump bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the LH exhaust camshaft oil control valve (OCV) (A).

Courtesy of HYUNDAI MOTOR AMERICA

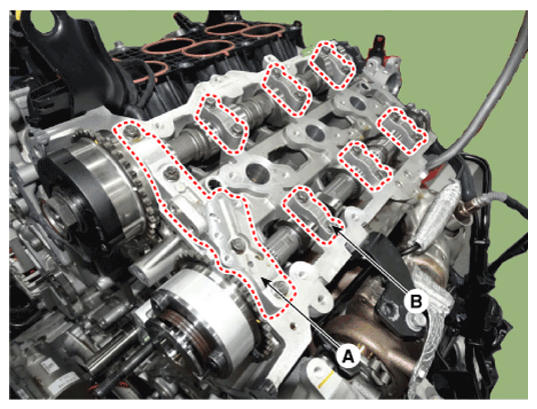

Remove the LH camshaft bearing cap (A) and thrust bearing cap (B).

Courtesy of HYUNDAI MOTOR AMERICA

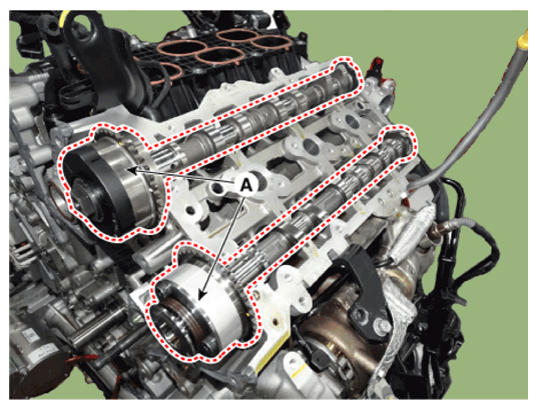

Remove the LH camshaft assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
