Continuous Variable Valve Timing (CVVT)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain.

    (Refer to Timing System - "TIMING CHAIN ")

  2. Remove the CVVT assembly.

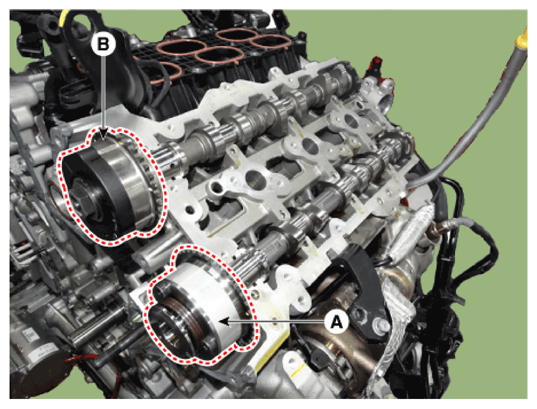

    1. LH exhaust CVVT
    2. LH intake CVVT
      G14207374Courtesy of HYUNDAI MOTOR AMERICA

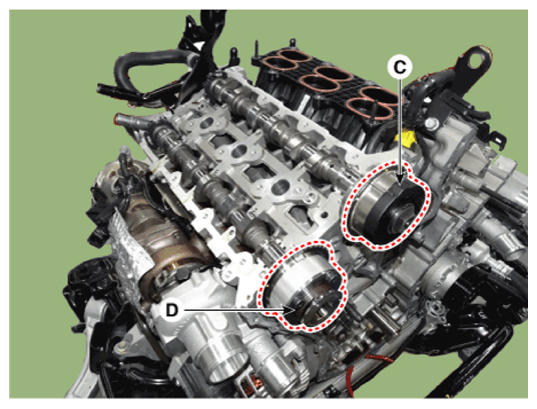

    3. RH intake CVVT
    4. RH exhaust CVVT
G14207375Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

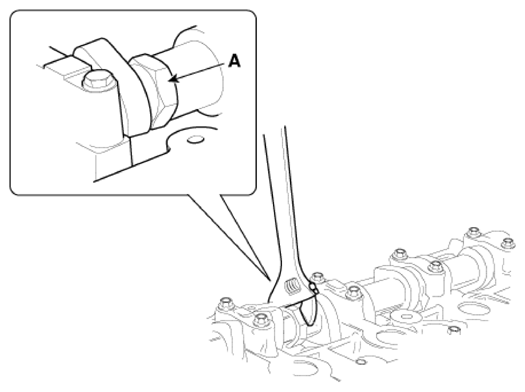

  • When removing the CVVT assembly bolt, prevent the camshaft from rotating by using a wrench at position (A).
G14207376Courtesy of HYUNDAI MOTOR AMERICA
