Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

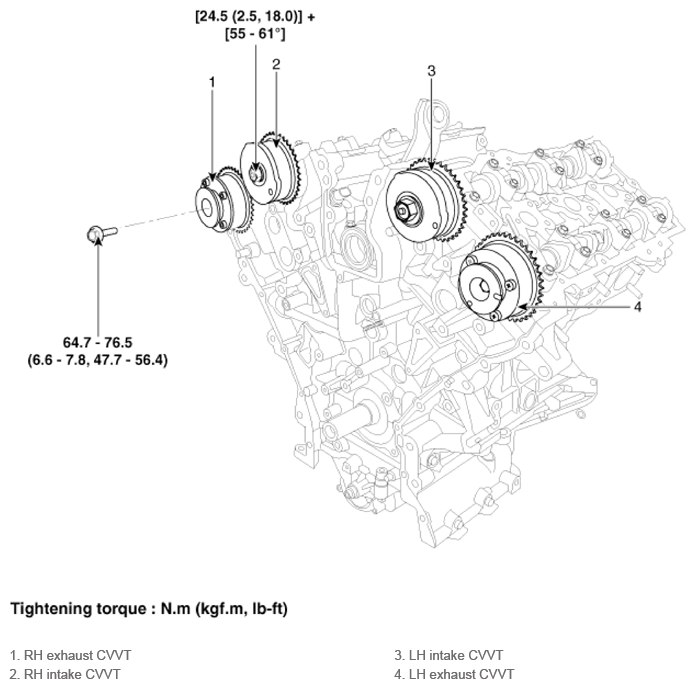

Fig 1: Continuous Variable Valve Timing Assembly Components Location With Torque Specification
G14207373Courtesy of HYUNDAI MOTOR AMERICA
