Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

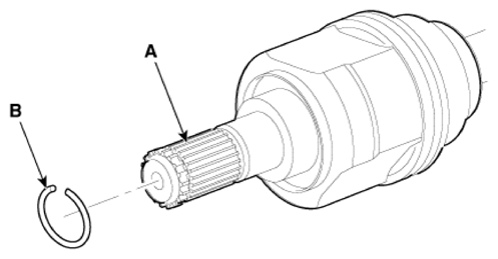

  2. Remove the housing circlip (B) from the driveshaft spline (A).
    G14209668Courtesy of HYUNDAI MOTOR AMERICA

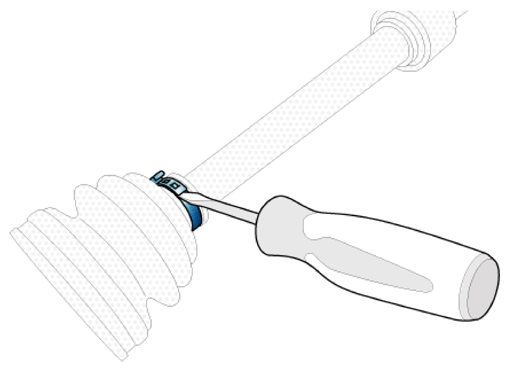

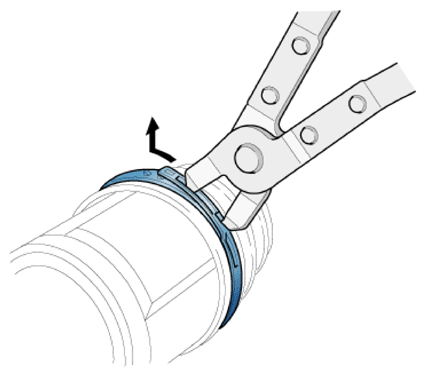

  3. Remove both boot bands from the TJ housing.
    G14209669Courtesy of HYUNDAI MOTOR AMERICA
    G14209670Courtesy of HYUNDAI MOTOR AMERICA

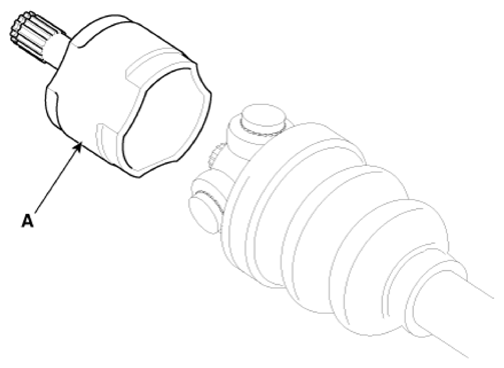

  4. Remove the TJ housing (A).
    G14209671Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

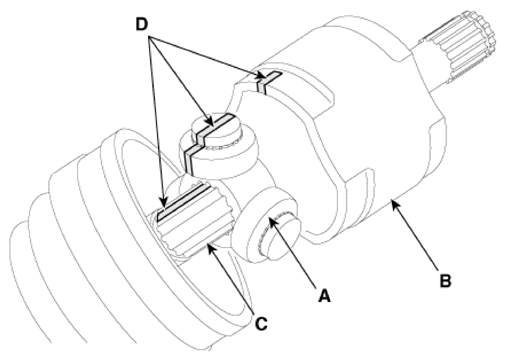

    • Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
    G14209672Courtesy of HYUNDAI MOTOR AMERICA

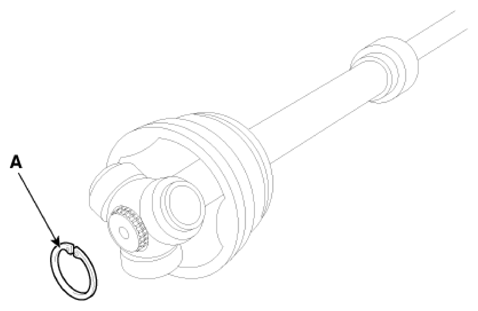

  5. Remove the retainer ring (A) from the shaft.
    G14209673Courtesy of HYUNDAI MOTOR AMERICA

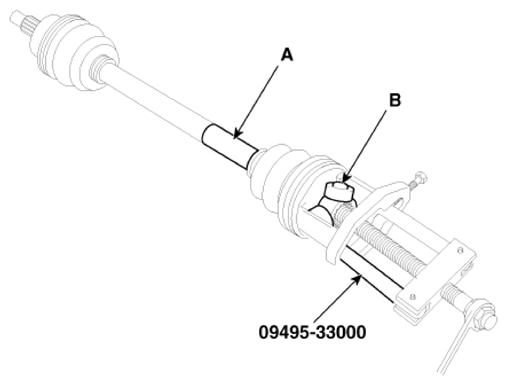

  6. Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).
    G14209674Courtesy of HYUNDAI MOTOR AMERICA
  7. Clean the spider assembly.

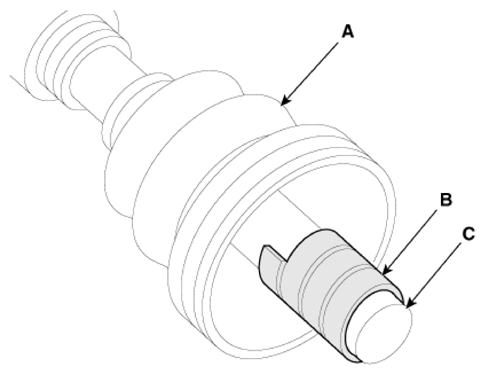

  8. Remove the TJ boot (A).
    NOTE:
    • For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
G14209675Courtesy of HYUNDAI MOTOR AMERICA
