GDS data analysis

WARNING: This page is about a different variant/trim than selected.

Connect GDS and turn the ignition on the ignition switch.

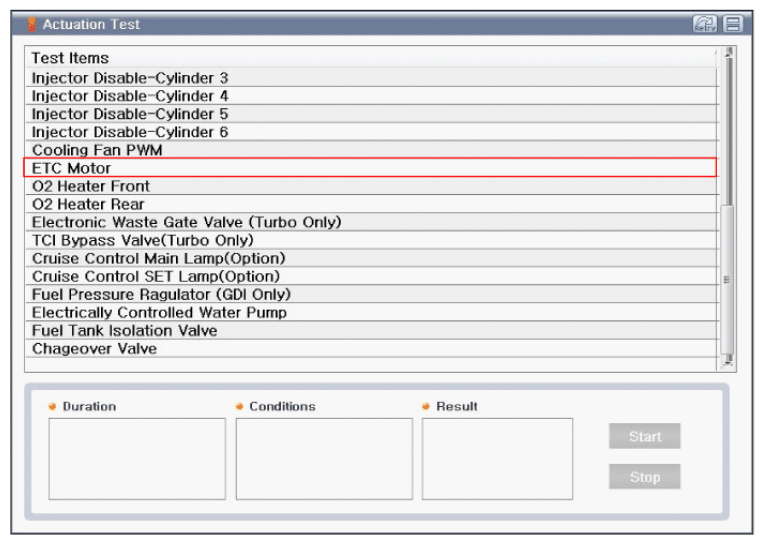

Select "ETC motor" on the "Actuation Test"
After pressing the start button, monitor the parameters related to of TPS 1 and TPS 2 and check the sound of ETC moving.

Courtesy of HYUNDAI MOTOR AMERICA
Are the service data and the motor moving sound normally working?
YES
- Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- If TPS 1 & 2 signal output is abnormal: Repair the system following the process of P0121 and P0221.
- If there is no ETC motor moving sound: Repair the system following the process of P0638.
