RCV Actuation Test
WARNING: This page is about a different variant/trim than selected.

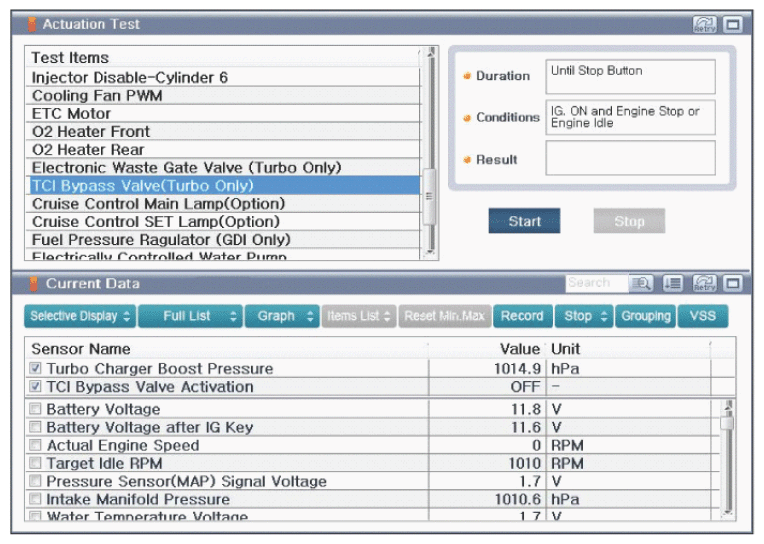

- Connect GDS and select "Actuation Test" mode.
- Start the engine.
- Start 'Turbo Charger Bypass Valve' item.
- Is the waveform normal?
YES
- Go to next step as below.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
