DTC P0244-00: Turbocharger/Supercharger Wastegate Sol. 'A' Range/Performance: General Description

WARNING: This page is about a different variant/trim than selected.

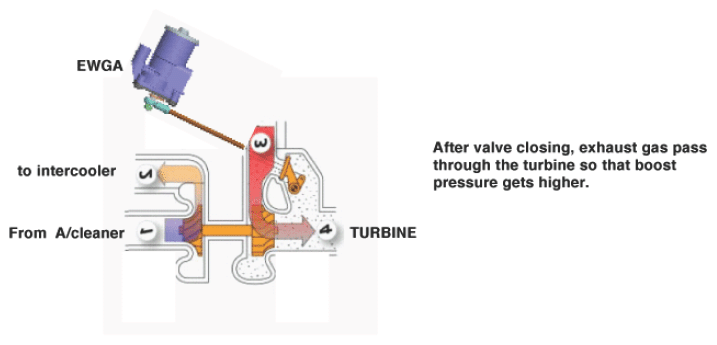

Electric Waste Gate Actuator (EWGA) controls by-pass valve before turbine. ECM opens by-pass valve for exhaust gas to be bypassed when the pressure of exhaust gas is too low because turbine can be a lack to decrease engine power at low RPM.

G14204636Courtesy of HYUNDAI MOTOR AMERICA
