Turbo Charger Boost Sensor (PUT) Inspection
WARNING: This page is about a different variant/trim than selected.
- Connect GDS and select "Current Data" mode
- Start the engine.

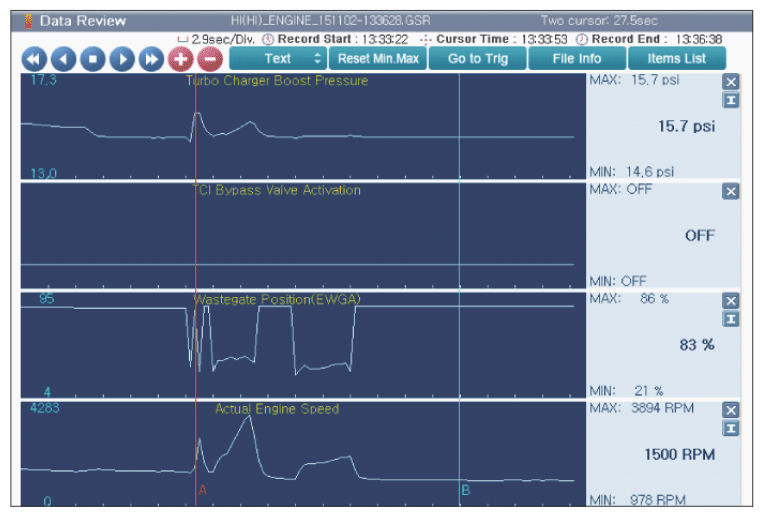

- Monitor the parameters related to turbo charger on the "Current Data" menu of the GDS as below.
Specification : the change of turbo charger boost pressure should parallel actual engine speed
- Is parameter displayed normal?
YES
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good Boost Pressure Sensor (PUT) and check for proper operation. If the problem is corrected, replace Boost Pressure Sensor (PUT) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
