Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.
The Purge Control Solenoid Valve (PCSV) is open or closed by the ECM.

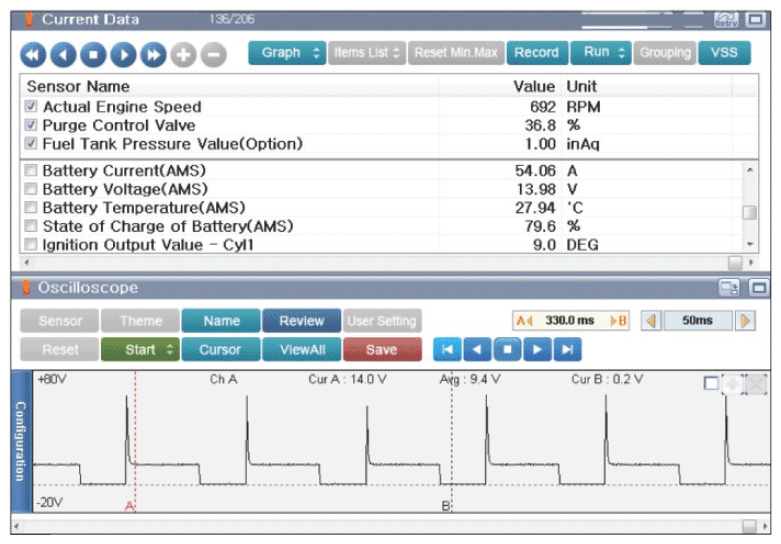

At opening, fuel vapor from canister enters into intake manifold. This photo shows the signal waveform of PCSV operating normally.
