RH Main Muffler

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery (-) terminal from the trunk room.

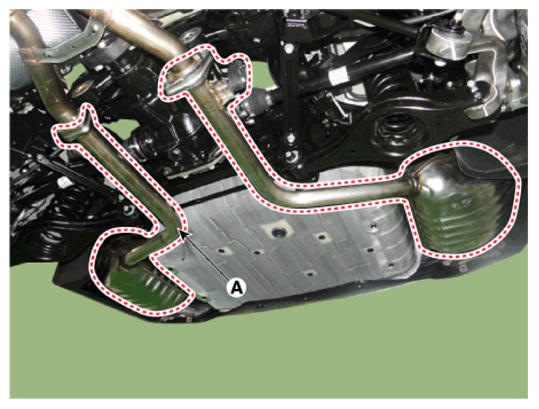

  2. Remove the RH main muffler (A).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14207681Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
