LH Front Muffler

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery (-) terminal from the trunk room.

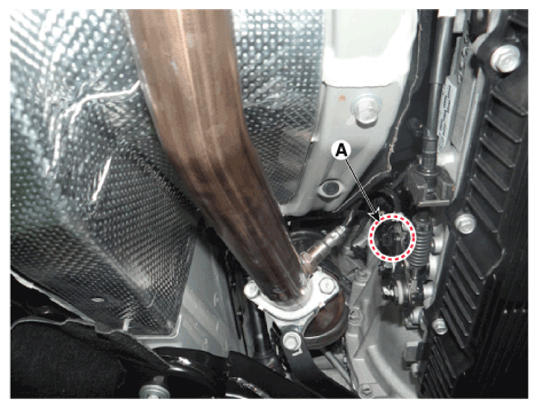

  2. Disconnect the LH rear oxygen sensor connector (A).
    G14207675Courtesy of HYUNDAI MOTOR AMERICA

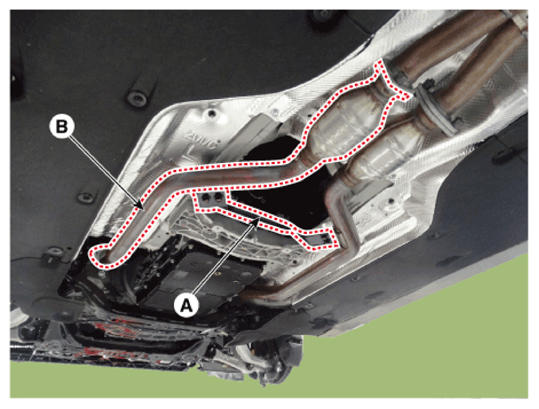

  3. Remove the transmission stay bracket (A) and LH front muffler (B).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14207676Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
