Center Muffler
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery (-) terminal from the trunk room.

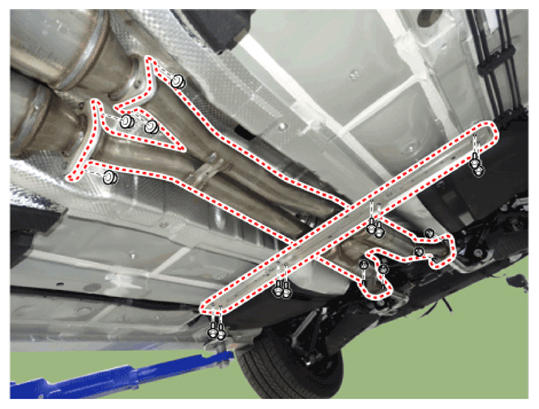

- Remove the bracket (A) and then remove the center muffler (B).
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- To install, reverse the removal procedure.
