RH Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

Remove the engine and transmission assembly.
(Refer to Engine and Transmission Assembly - "ENGINE AND TRANSMISSION ASSEMBLY ")
Remove the water outlet pipe.
(Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

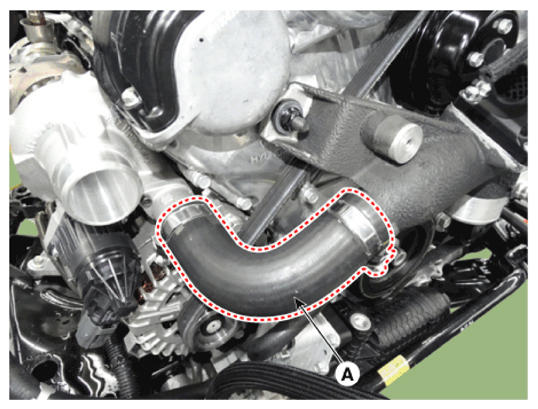

Remove the turbo charger outlet hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

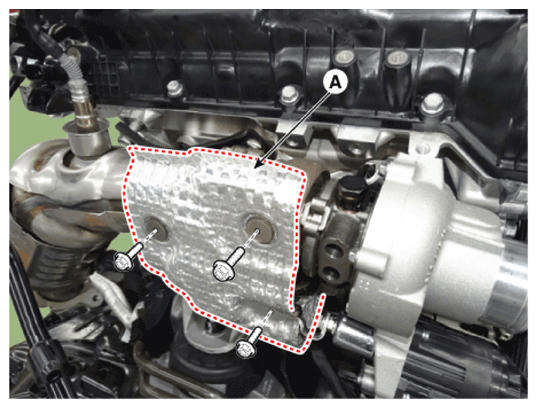

Remove the heater protector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

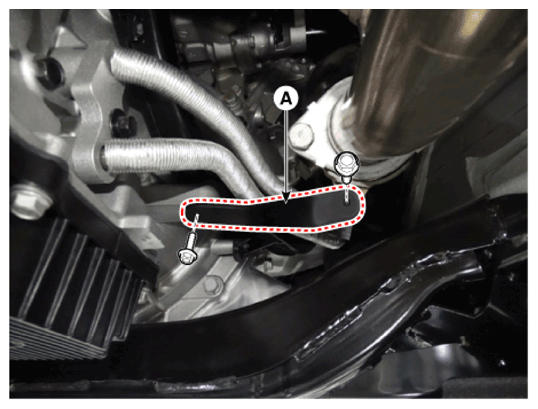

Remove the RH exhaust stay (A).
Tightening torque:

34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

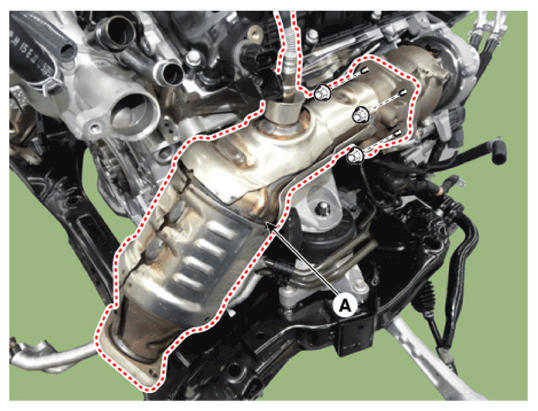

Remove the DPF assembly (A).
Tightening torque:

58.8 - 63.7 N.m (6.0 - 6.5 kgf.m, 43.4 - 47.0 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

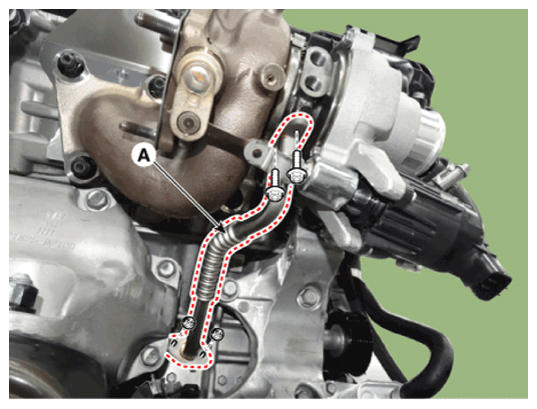

Remove the turbo charger oil drain pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

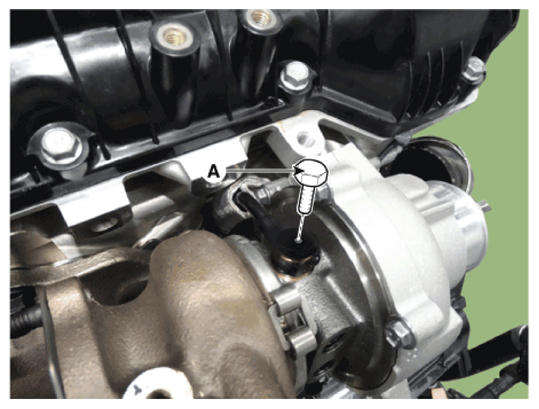

Remove the turbo charger oil feed pipe bolt (A).
Tightening torque:

11.7 - 17.6 N.m (1.2 - 1.8 kgf.m, 8.6 - 13.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

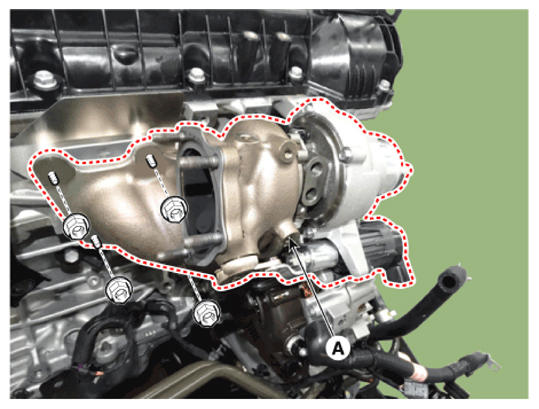

Remove the turbo manifold module (A), and gasket.
Tightening torque:

58.8 - 63.7 N.m (6.0 - 6.5 kgf.m, 43.4 - 47.0 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
